    High Pass Filter 2.0 ~ 18.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2838180218SK

    2.0 ~ 18.0

    1.5

    2

    50dB @DC~1.1GHz

    SMA Female

    Basic Specifications

    Dimension

    38*18*11mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40~+70℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

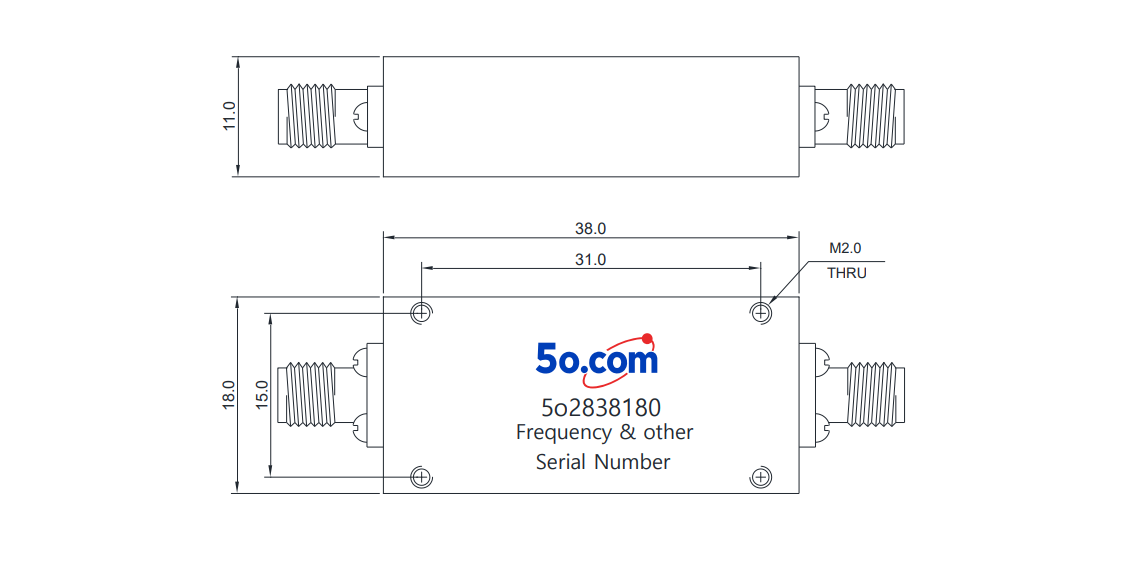

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
