    High Pass Filter 2.0 ~ 6.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range

     (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o283734026NK

    2.0 ~ 6.0

    1.5

    2.0

    45dB @DC-1654MHz

    N Female

    5o283734026SK

    2.0 ~ 6.0

    1.5

    2.0

    45dB @DC-1654MHz

    SMA Female

    Basic Specifications

    Dimension

    37*34*20mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -40~+85℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

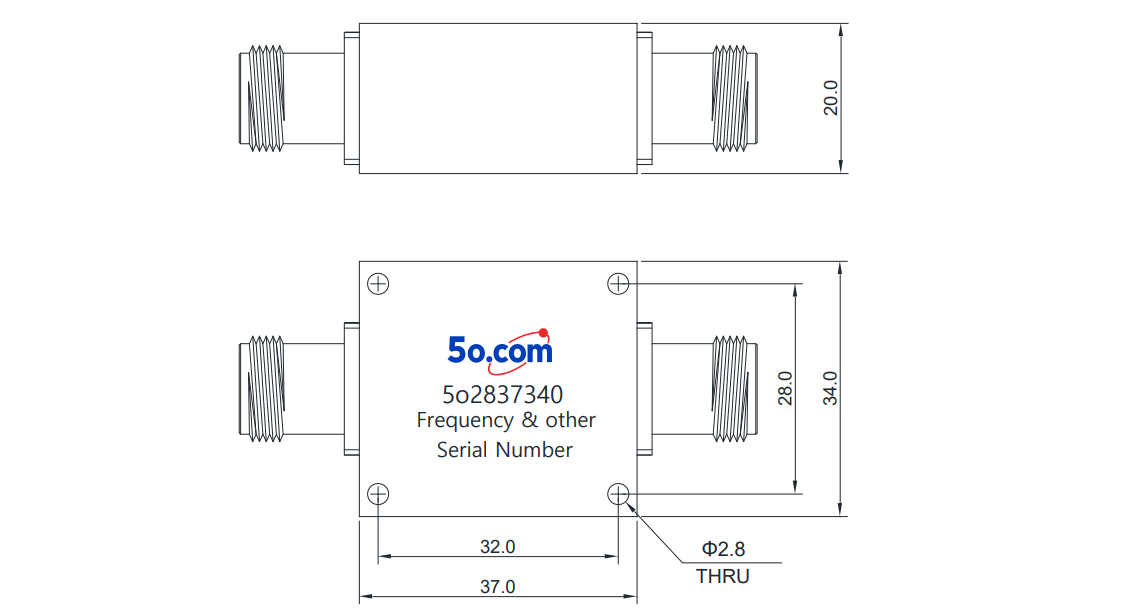

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
