    High Pass Filter 170 ~ 500MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2835250170500BKNK

    170 ~ 500

    1.0

    1.5

    20dB @DC-150MHz

    BNC Female to N Female

    5o2835250170500SK

    170 ~ 500

    1.0

    1.5

    20dB @DC-150MHz

    SMA Female

    Basic Specifications

    Dimension

    35*25*20mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40~+85℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

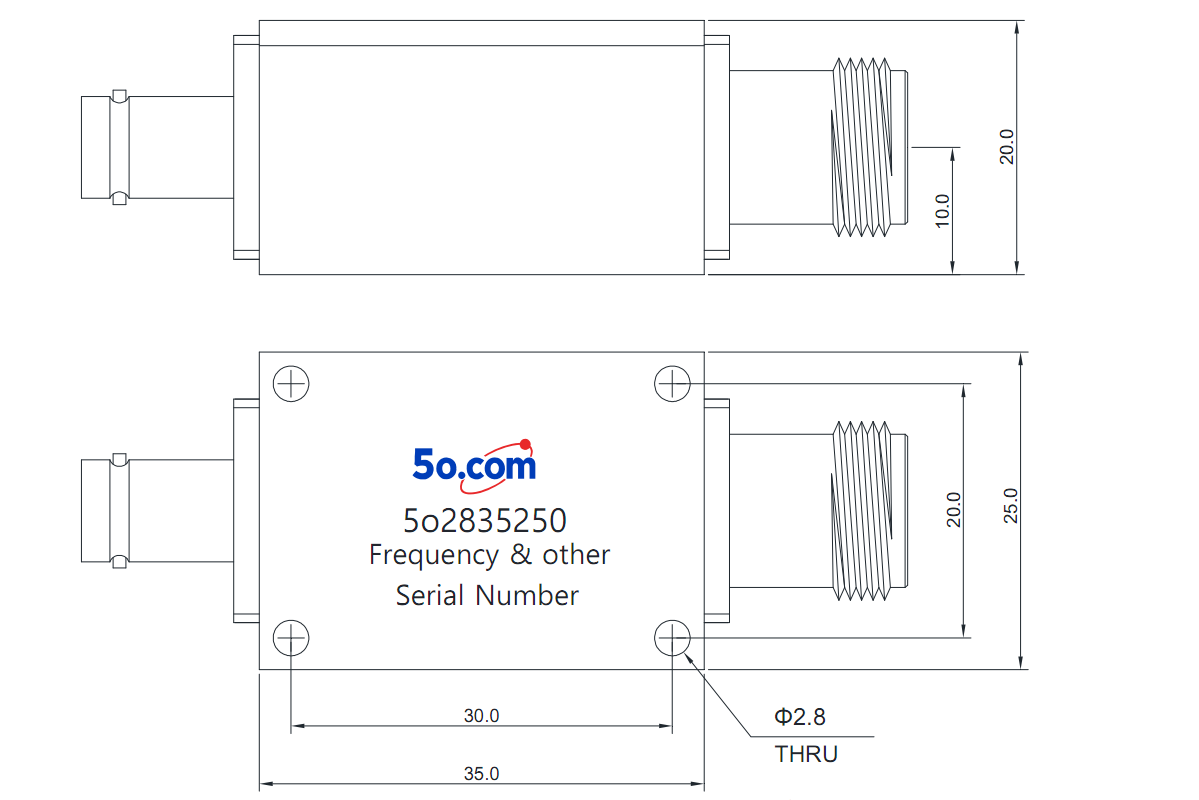

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
