    High Pass Filter 2390 ~ 12750MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency  Range

     (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o2834300239012750SK

    2390 ~ 12750

    1.0

    1.8

    40dB @DC-1900MHz

    SMA Female

    Basic Specifications

    Dimension

    34*30*12mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40~+85℃

    Appearance color

    Black

    Storage Temperature

    -55~+125℃

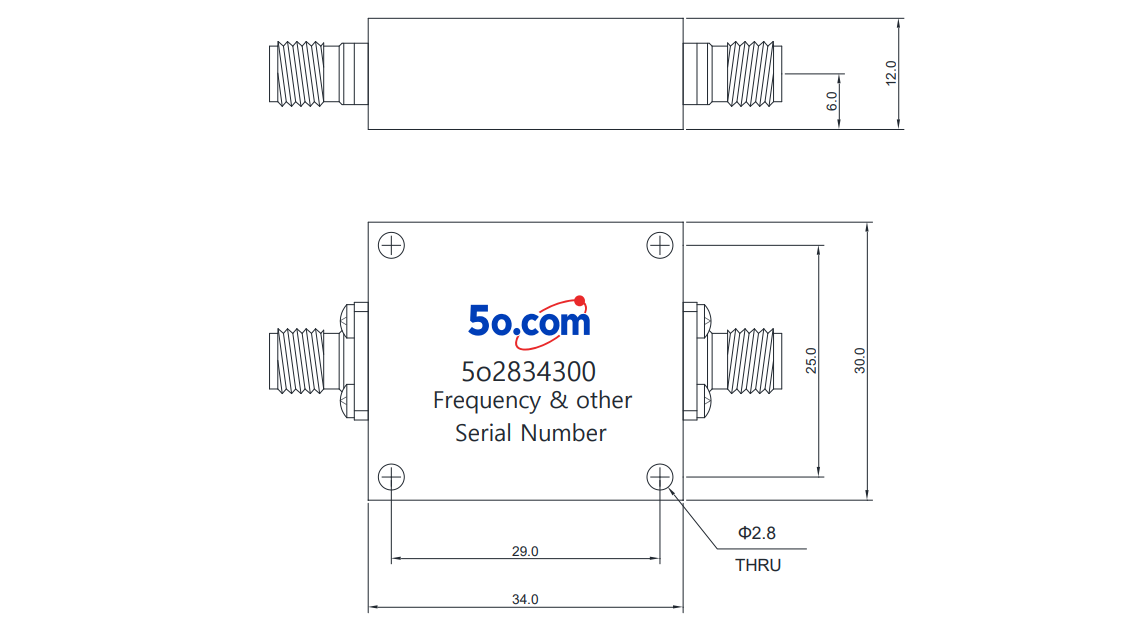

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
