    High Pass Filter 6.0 ~ 24.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency   Range

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o2832230624SK

    6.0~24.0

    2.0dB @6.0~6.3GHz
      1.0dB @6.3~24GHz

    1.5@6~20GHz
      1.8@20~24GHz

    60dB @DC~5.4GHz

    SMA Female

    Basic Specifications

    Dimension

    32*23*10mm

    Impedance

    50Ω

    Power

    15W

    Operating Temperature

    -55 ~ +85℃

    Appearance color

    Black

    Storage Temperature

    -55 ~ +125℃

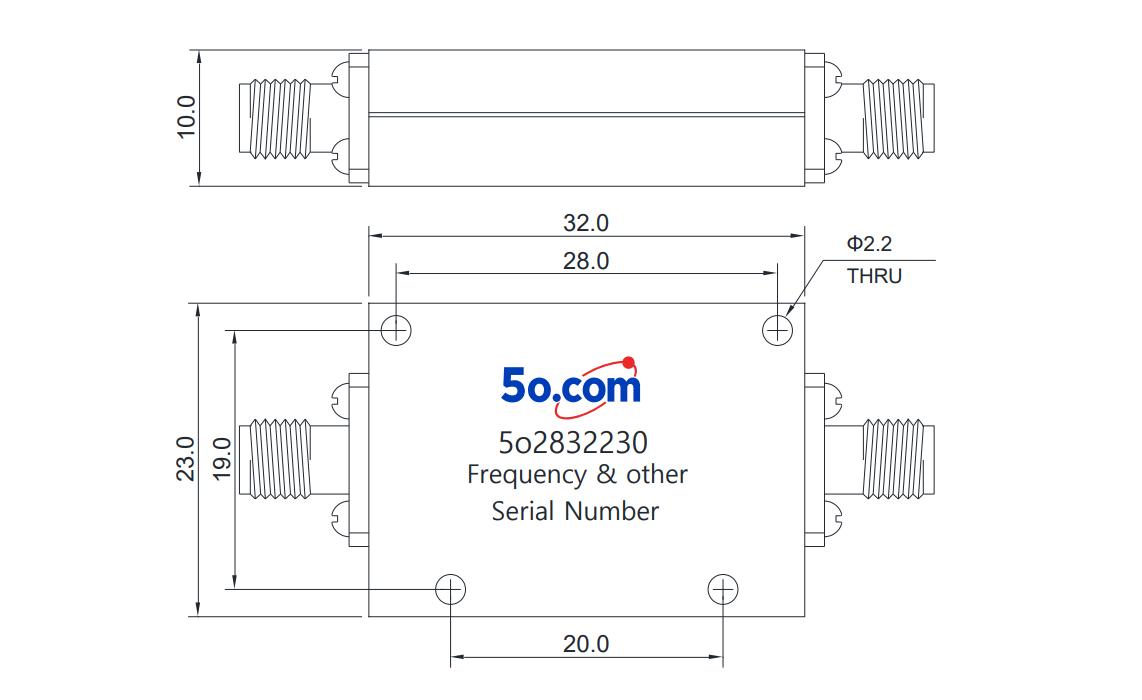

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
