    Low Pass Filter DC ~ 3600MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency  Range

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o27992303600SK

    DC-3600

    1.0

    1.8

    45dB @4300-8000MHz

    SMA  Female

    5o27992303600NK

    DC-3600

    1.0

    1.8

    45dB @4300-8000MHz

    N  Female

    Basic Specifications

    Dimension

    99.5*23*18mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

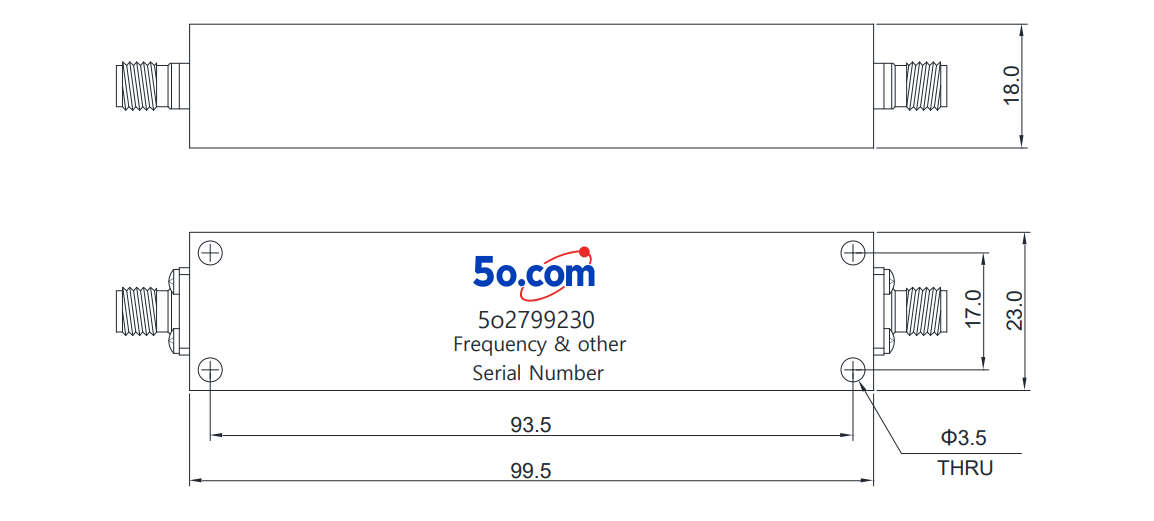

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
