     Low Pass Filter DC ~ 2850MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o27803202850SK

    DC-2850

    1.5 @DC~2800MHz
    2.5dB @2800~2850MHz

    1.8

    45dB @3.2 ~ 18GHz

    SMA  Female

    Basic Specifications

    Dimension

    80*32*12mm

    Impedance

    50Ω

    Power

    5W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

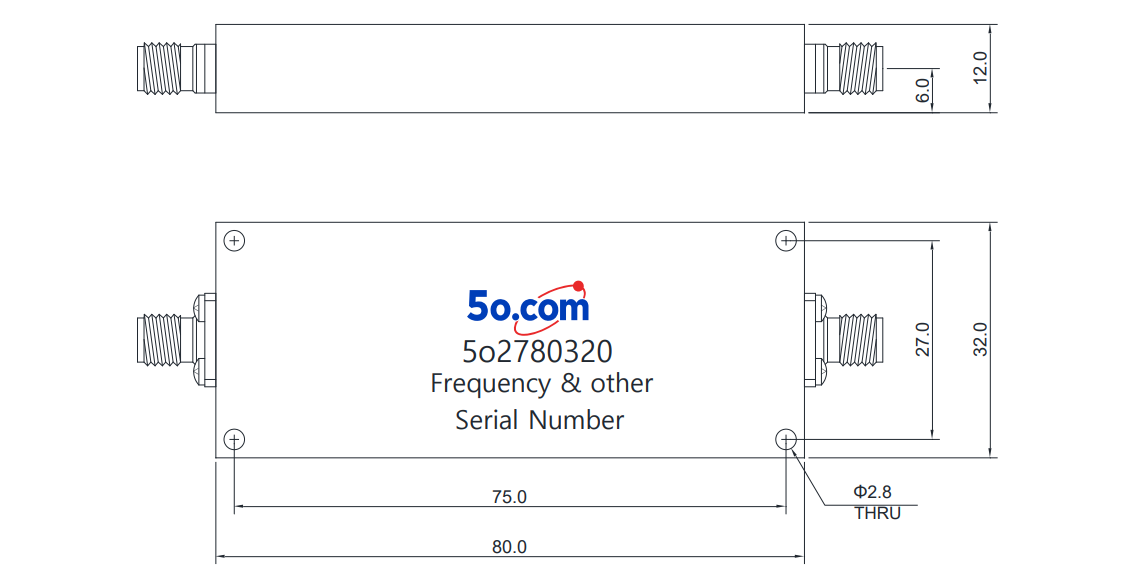

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
