     Low Pass Filter DC ~ 1800MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o27642001800SKSJ

    DC-1800

    0.2dB@1610~1626.5MHz

    0.6dB@DC~1800MHz

    1.5

    20dB@3220~3253MHz

    25dB@4830~4879.5MHz

    30dB@6440~6506MHz

    SMA Female to SMA Male

    5o27642001800SK

    DC-1800

    0.2dB@1610~1626.5MHz

    0.6dB@DC~1800MHz

    1.5

    20dB@3220~3253MHz

    25dB@4830~4879.5MHz

    30dB@6440~6506MHz

    SMA Female

    Basic Specifications

    Dimension

    64*20*16mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage Temperature

    -55 ~ +125℃

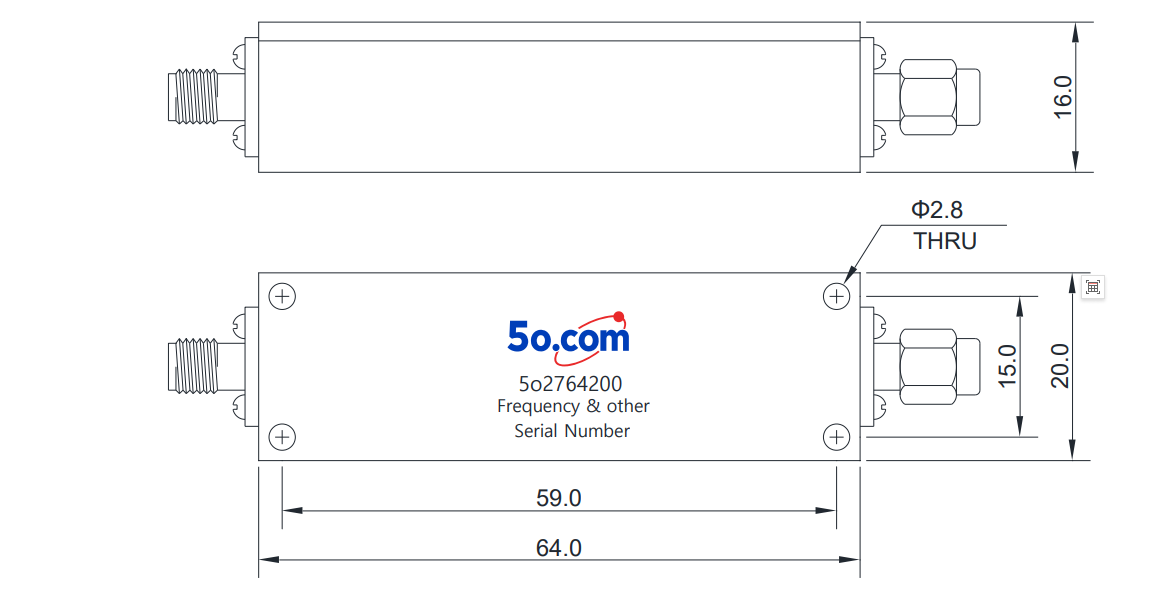

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
