      Low Pass Filter 5 ~ 285MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency  Range

     (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o27401205285SK

    5 ~ 285

    2.0

    1.5

    45dB @330~650MHz

    SMA  Female

    Basic Specifications

    Dimension

    40.4*12*10mm

    Impedance

    50Ω

    Power

    5W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage Temperature

    -55 ~ +125℃

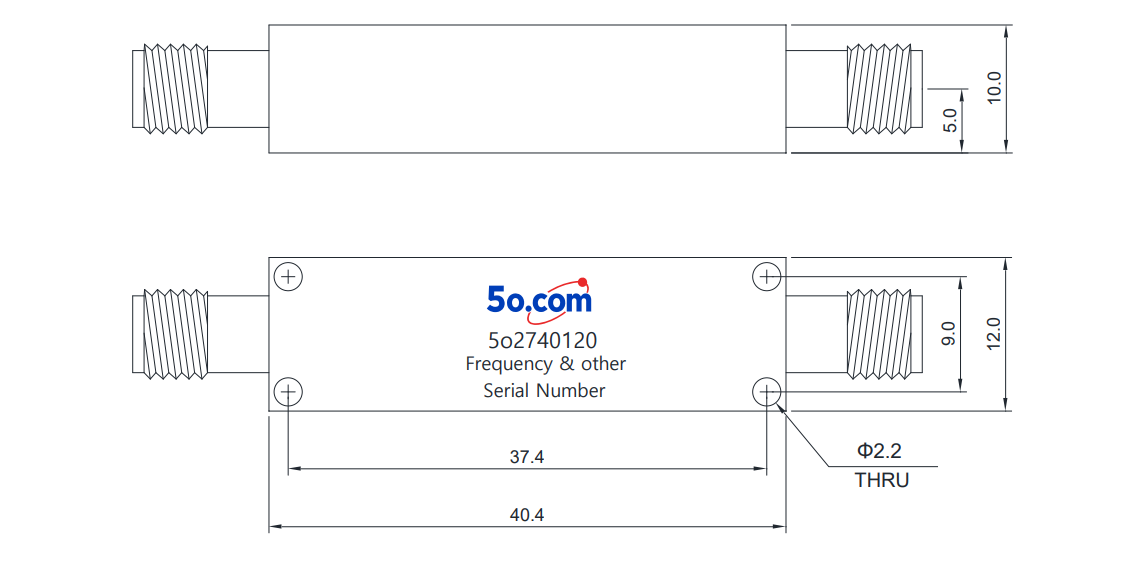

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
