    Low Pass Filter DC ~ 8GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o27302208SK

    DC-8.0

    1.0

    1.8

    50dB @9.3~15.0GHz

    SMA Female

    Basic Specifications

    Dimension

    30*22*12mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

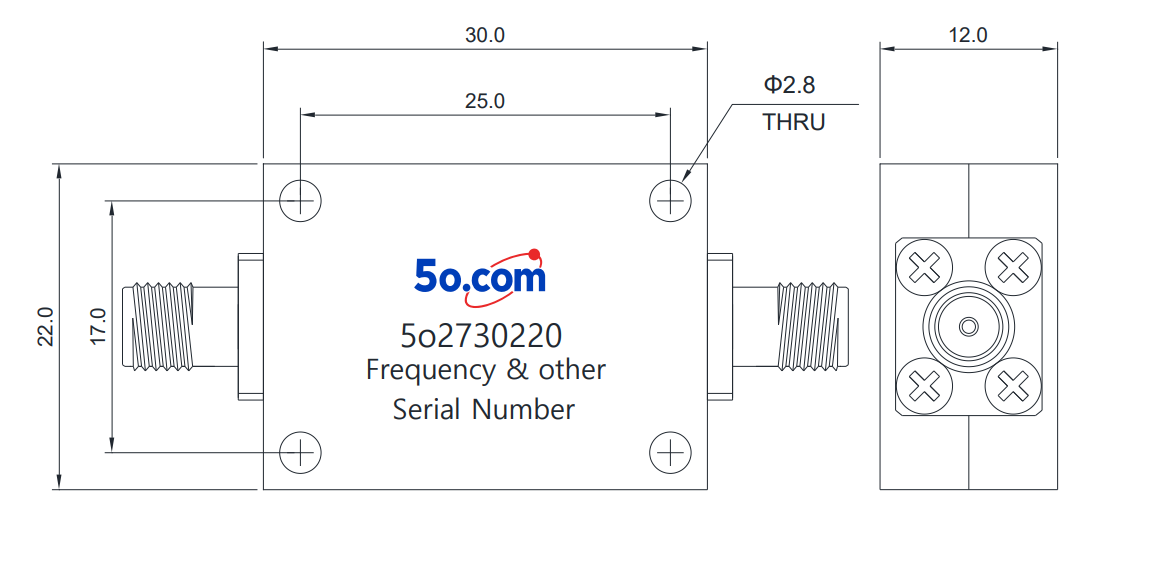

    Overall Dimension(mm)


                          Tolerances: ±2% unless otherwise stated.
