    Low Pass Filter DC ~ 10GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o272522110SK

    DC-10.0

    1.0

    2.0

    50dB @12.0~16.0GHz

    SMA  Female

    Basic Specifications

    Dimension

    25*22*12mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

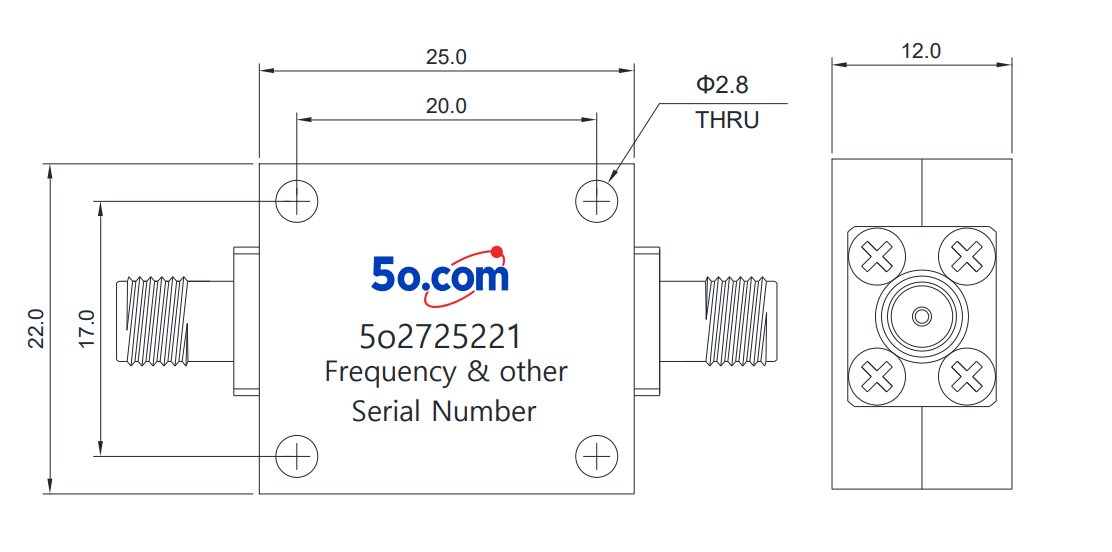

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
