     Low Pass Filter DC ~ 1500MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o27180260490NK

    DC-490

    0.5

    1.3

    45dB @850MHz

    N Female

    5o27180260490SK

    DC-490

    0.5

    1.3

    45dB @850MHz

    SMA Female

    5o27180260500NK

    DC-500

    1.5

    1.5

    40dB @700 ~ 2000MHz

    N Female

    5o271802601500NK

    DC-1500

    1.5

    1.5

    40dB @1700 ~ 3000MHz

    N Female

    Basic Specifications

    Dimension

    180*26*20mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -40 ~ +85℃

    50W

    -20 ~ +55℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

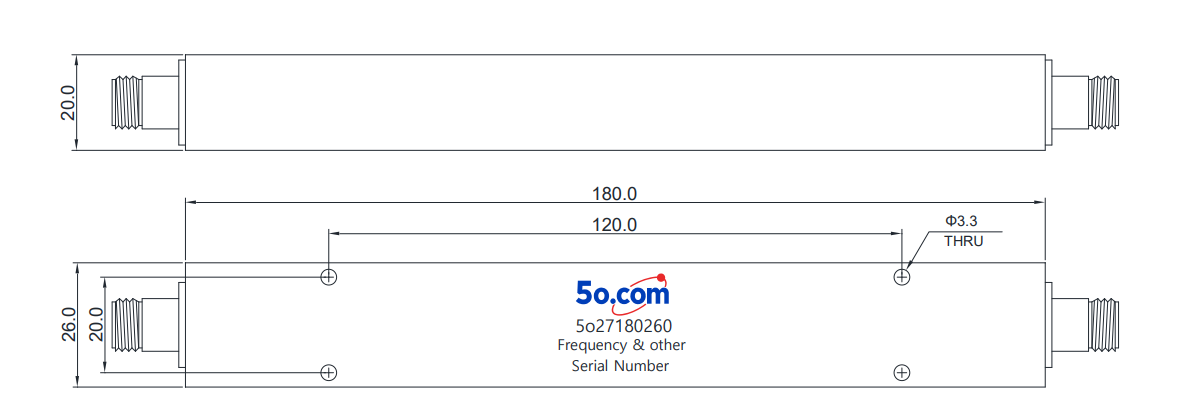

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
