      Low Pass Filter 5 ~ 95MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency  Range

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector Type

    5o27160540595SK

    5 ~ 95

    1.5

    1.4

    40dB @105 ~ 500MHz

    SMA Female

    5o27160540595NK

    5 ~ 95

    1.5

    1.4

    40dB @105 ~ 500MHz

    N Female

    Basic Specifications

    Dimension

    160*54*20mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -25 ~ +55℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~ +125℃

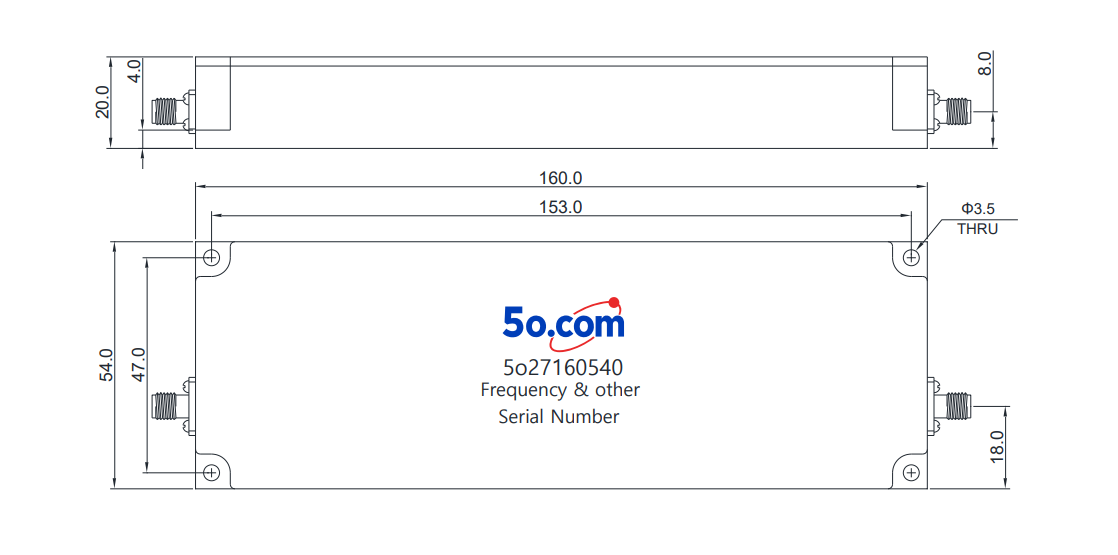

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
