    Band Pass Filter 5100 ~ 5900MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

     (MHz)

    Insertion Loss
      Max(dB)

    Ripple
      Max

    (dB)

    Return   loss

    Min(dB)

    Rejection

    Connector

    Type

    5o269550051005900SK

    5100 ~ 5900

    0.5

    0.4

    16

    40dB@DC~4450MHz

    60dB@6200~8000MHz

    SMA Female

    Basic Specifications

    Dimension

    95*50*10mm

    Impedance

    50Ω

    Power

    75W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

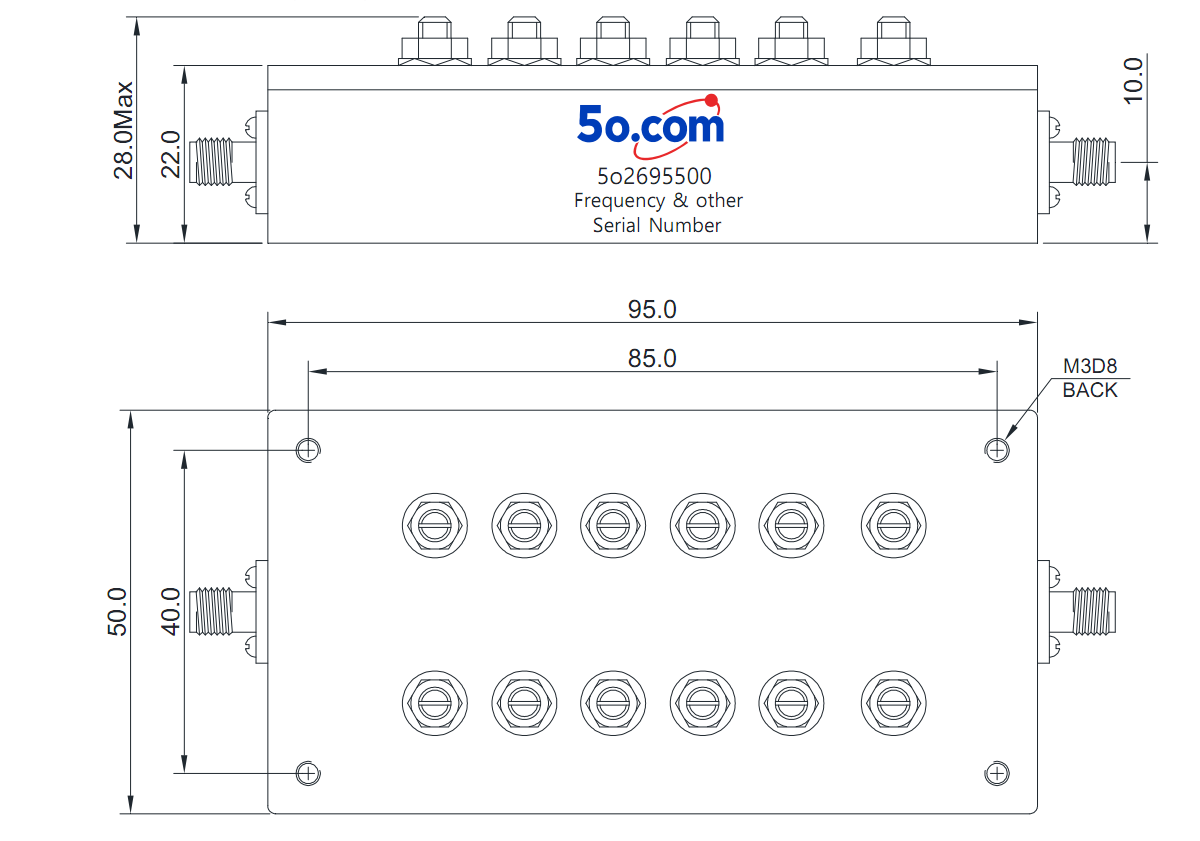

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
