Part Number

Pass Band (MHz)

Insertion Loss
  Max(dB)

VSWR
  Max

Rejection

Connector

Type

5o2693930380383SK

380 ~   383

2.0

1.3

40dB   @F0±8MHz                         60dB   @88~108MHz

SMA Female

5o269393038453865NK

384.5   ~ 386.5

2.0

1.3

40dB   @F0±8MHz                                    60dB @88~108MHz

N Female

5o2693930400403NK

400 ~   403

2.0

1.3

40dB   @F0±8MHz                                    60dB @88~108MHz

N Female

5o2693930400430NK

400 ~   430

1.5

1.3

65dB   @88~108MHz                       65dB   @700~2700MHz

N Female

5o2693930400480SK

400 ~   480

1.5

1.3

40dB   @650MHz                                60dB @700~2700MHz

SMA Female

5o269393043154345NK

431.5   ~ 434.5

2.0

1.3

40dB   @F0±8MHz                                   60dB @88~108MHz

N Female

5o2693930451462NK

451 ~   462

0.7

1.4

35dB   @Fc ±40MHz

N Female

5o2693930451462SK

451 ~   462

0.7

1.4

35dB   @Fc ±40MHz

SMA Female

5o2693930470480NK

470 ~   480

1.0

1.4

35dB   @Fc ±40MHz                            60dB @88~108MHz

N Female

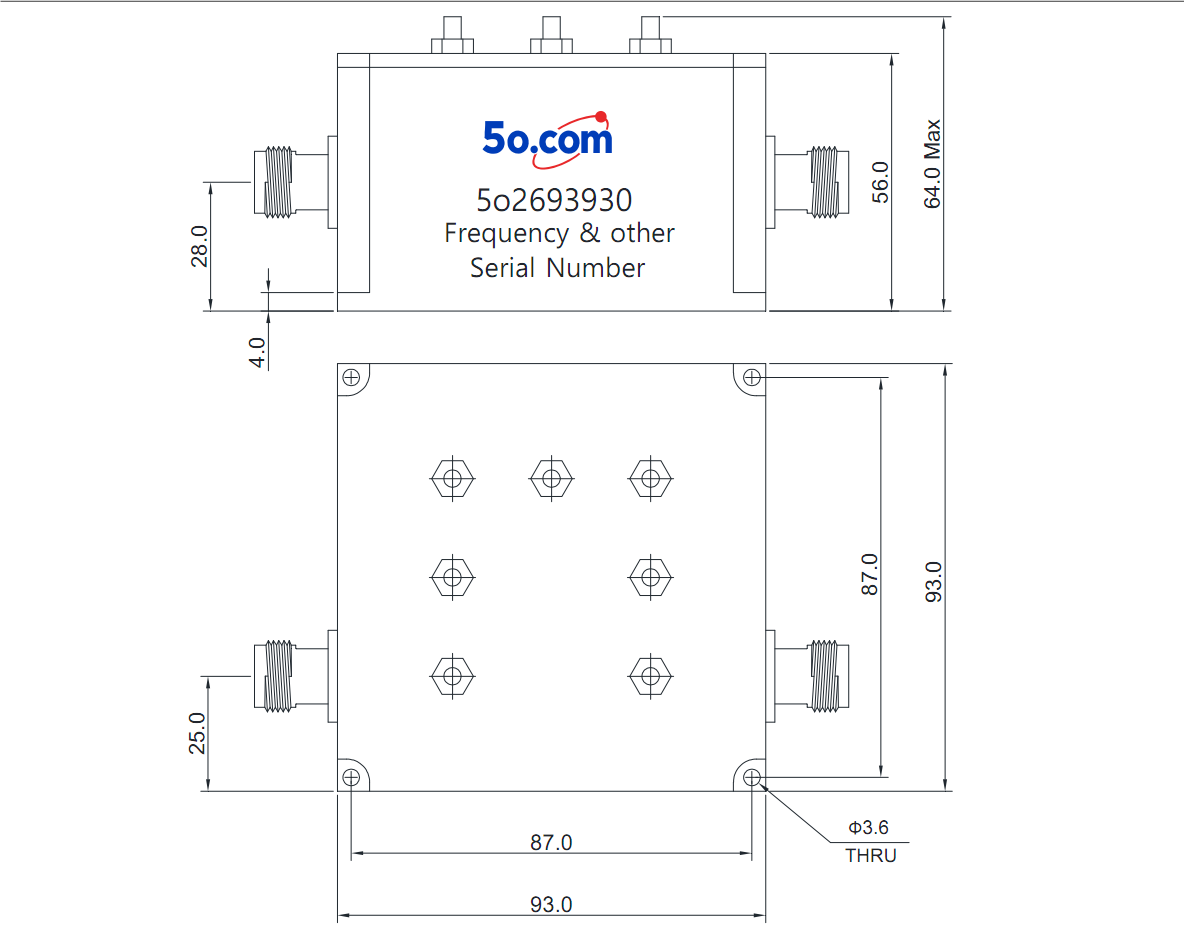

Dimension

93*93*64mm

Impedance

50Ω

Power

100W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
