    Band Pass Filter 1710 ~ 1910MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o26906201710T1785SK

    1710 ~ 1785

    0.8

    1.5

    60dB @1820~1880MHz

    SMA Female

    5o26906201710T1785NK

    1710 ~ 1785

    0.8

    1.5

    60dB @1820~1880MHz

    N Female

    5o26906201805T1910SK

    1805 ~ 1910

    1.0

    1.5

    50dB @1930~1990MHz

    SMA Female

    5o26906201805T1910NK

    1805 ~ 1910

    1.0

    1.5

    50dB @1930~1990MHz

    N Female

    Basic Specifications

    Dimension

    90*62*35mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

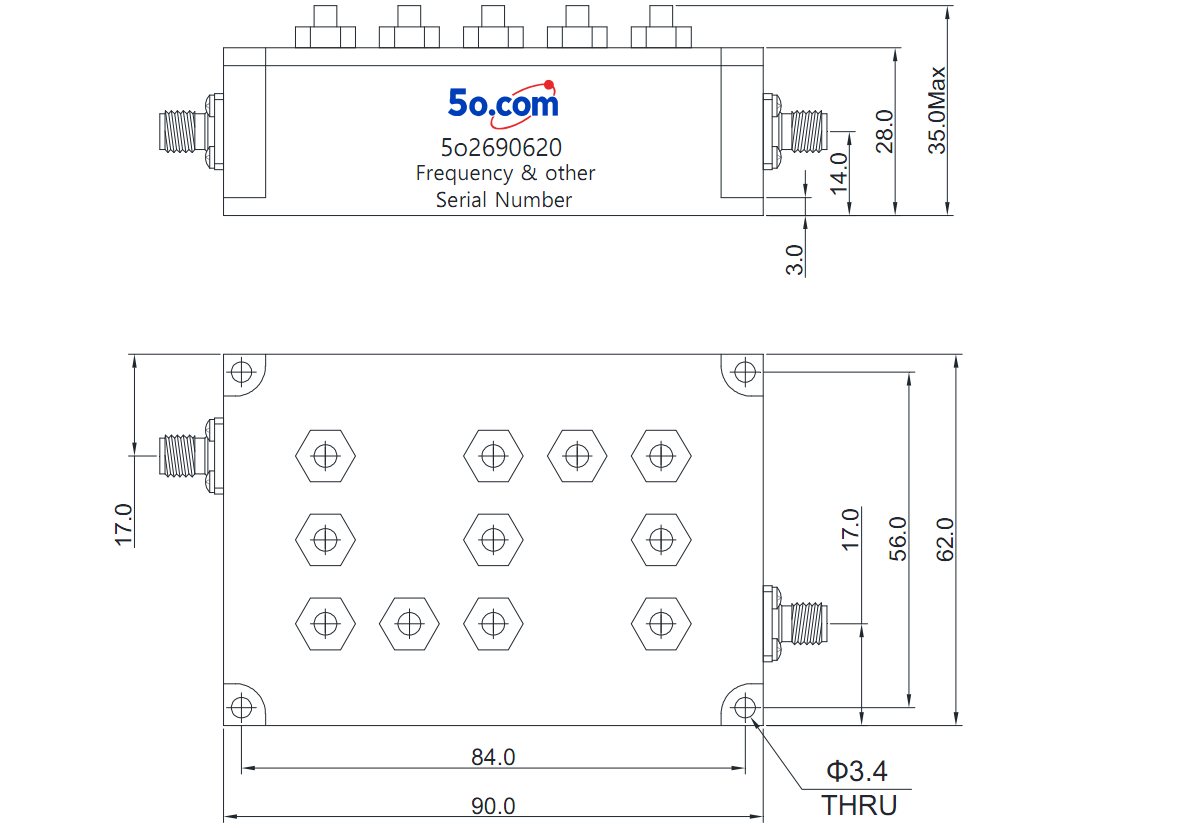

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
