    Band Pass Filter 3400 ~ 3700MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss
      Max(dB)

    Ripple   Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o268648034003700NKNJ

    3400 ~ 3700

    1.0

    0.8

    1.4

    50dB@2500~2690MHz
      50dB@4420~4960MHz

    N Female to N Male

    5o268648034003700NK

    3400 ~ 3700

    1.0

    0.8

    1.4

    50dB@2500~2690MHz
      50dB@4420~4960MHz

    N Female

    5o268648034003700SK

    3400 ~ 3700

    1.0

    0.8

    1.4

    50dB@2500~2690MHz
      50dB@4420~4960MHz

    SMA Female

    5o268648034003700SKSJ

    3400 ~ 3700

    1.0

    0.8

    1.4

    50dB@2500~2690MHz
      50dB@4420~4960MHz

    SMA Female to SMA Male

    Basic Specifications

    Dimension

    86*48*32mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -20 ~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

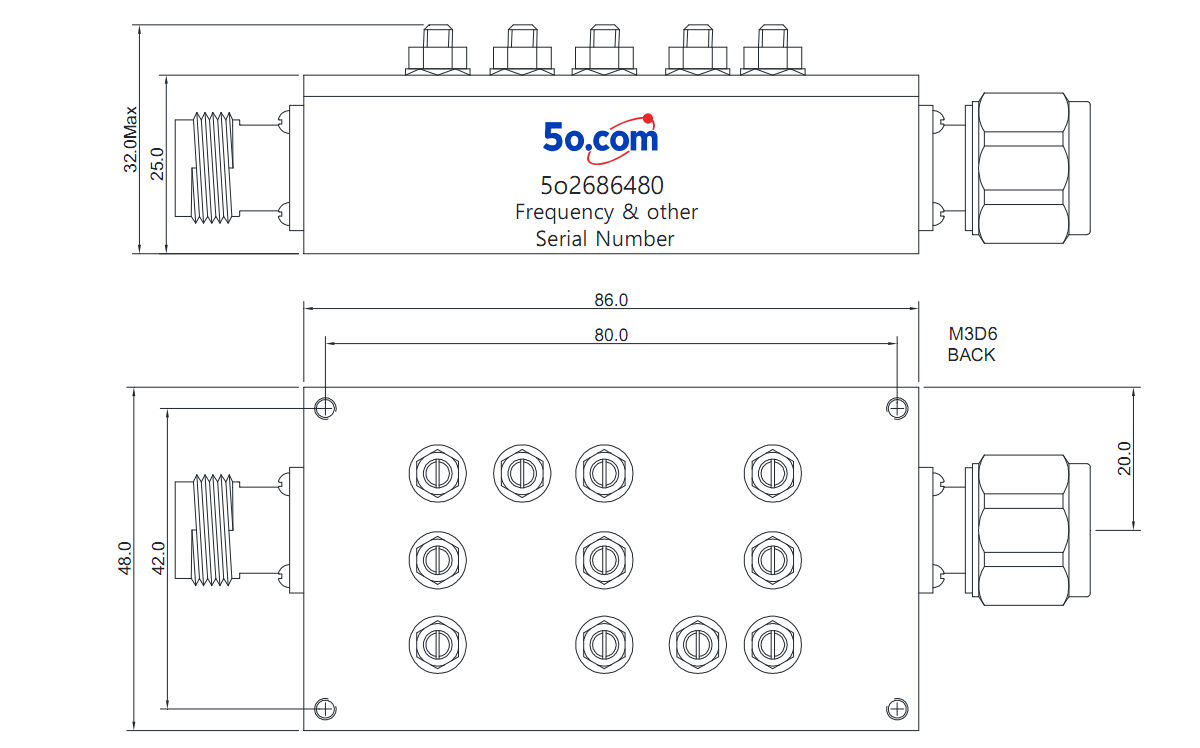

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
