Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

Temp.

(°C)

5o268570016101676MK6

1610~1676

1.2

0.5

1.35

40dBc@DC~1000MHz & 1559~1592MHz

70dBc@1166~1278MHz & 2480~2502MHz

50dBc@3253~3319MHz & 4896~4962MHz

50dBc@6539~6605MHz & 8182~8248MHz

50dBc@9825~9891MHz &11468~11534MHz

MCX-KYD6

25±5

1.5

-45 ~ +85

5o268570016101676SK

1610~1676

1.2

0.5

1.35

40dBc@DC~1000MHz & 1559~1592MHz

70dBc@1166~1278MHz & 2480~2502MHz

50dBc@3253~3319MHz & 4896~4962MHz

50dBc@6539~6605MHz & 8182~8248MHz

50dBc@9825~9891MHz &11468~11534MHz

SMA Female

25±5

1.5

-45 ~ +85

5o268570016101676NK

1610~1676

1.2

0.5

1.35

40dBc@DC~1000MHz & 1559~1592MHz

70dBc@1166~1278MHz & 2480~2502MHz

50dBc@3253~3319MHz & 4896~4962MHz

50dBc@6539~6605MHz & 8182~8248MHz

50dBc@9825~9891MHz &11468~11534MHz

N Female

25±5

1.5

-45 ~ +85

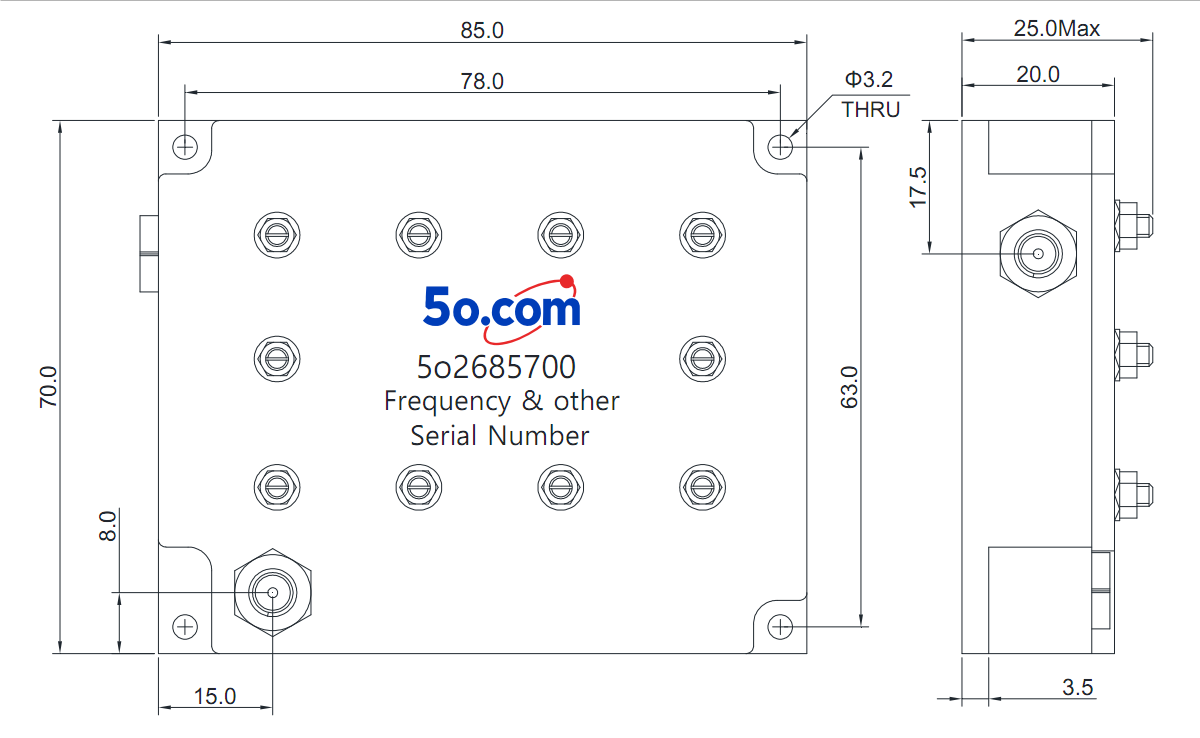

Dimension

85*70*25mm

Impedance

50Ω

Power

MCX-KYD6: 10W

Power

SMA Female /

N Female: 30W

Appearance Color

Black

Storage Temperature

-55~+125℃
