Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o268550015001560SK

1500 ~ 1560

0.75

0.5

1.22

60dB@DC-1460MHz                                         60dB@1620-2400MHz

SMA Female

5o268550015001560NK

1500 ~ 1560

0.75

0.5

1.22

60dB@DC-1460MHz                                            60dB@1620-2400MHz

N Female

5o268550027003200SK

2700 ~ 3200

0.6

0.5

1.3

50dB @DC~2100MHz                                         50dB   @3550-5000MHz

SMA Female

5o268550027003200NK

2700 ~ 3200

0.6

0.5

1.3

50dB @DC~2100MHz                                               50dB @3550-5000MHz

N Female

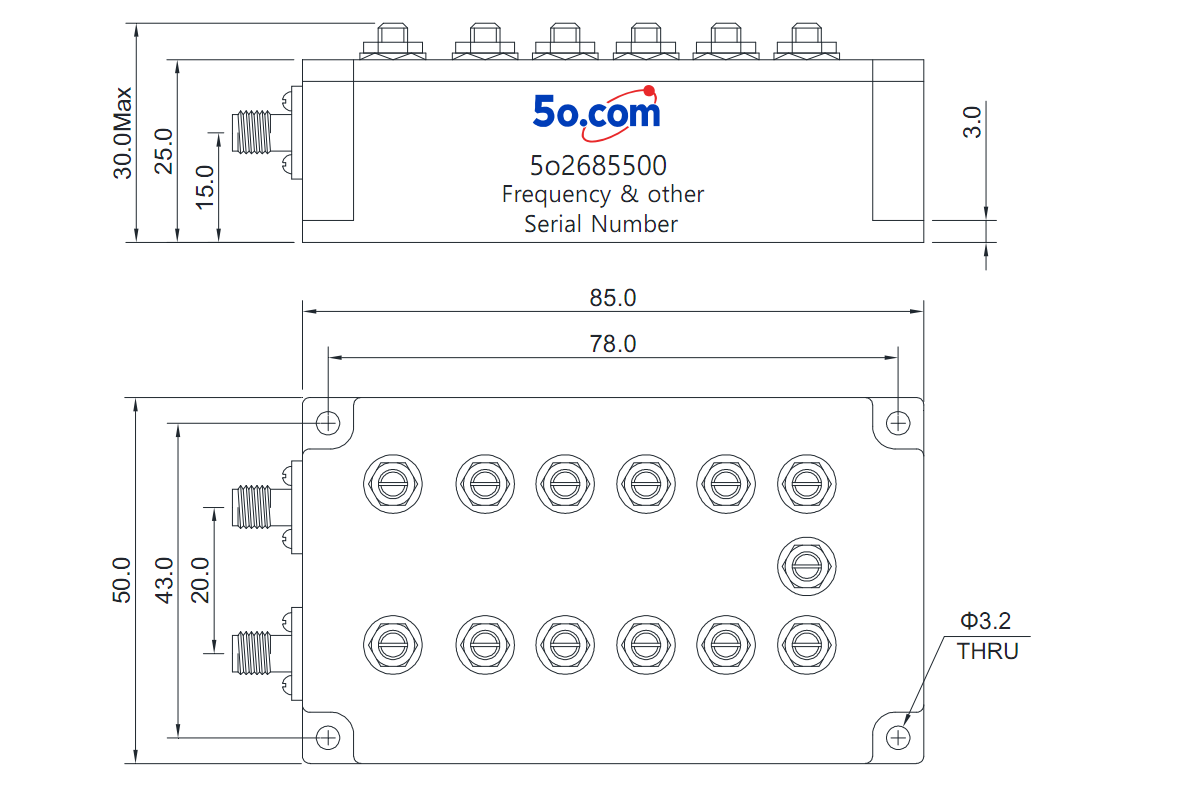

Dimension

85*50*30mm

Impedance

50Ω

Power

20W

Operating Temperature

-20~ +60℃

Appearance Color

Black

Storage Temperature

-55~+125℃
