Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o2683831435445SK

435 ~ 445

1.0

0.5

1.3

60dB @DC-390MHz                  60dB @490-2000MHz

SMA Female

5o2683831435445NK

435 ~ 445

1.0

0.5

1.3

60dB @DC-390MHz                   60dB @490-2000MHz

N Female

5o2683831450460NK

450 ~ 460

1.0

0.5

1.3

60dB @DC-405MHz                         60dB @505-2000MHz

N Female

5o2683831500510NK

500 ~ 510

1.0

0.5

1.3

60dB @DC-455MHz                     60dB @555-2000MHz

N Female

5o2683831690700SK

690 ~ 700

1.0

0.5

1.3

60dB @DC-445MHz                      60dB @745-2200MHz

SMA Female

5o2683831740750NK

740 ~ 750

1.0

0.5

1.3

60dB @DC-695MHz                        60dB @795-2500MHz

N Female

5o2683831790800NK

790 ~ 800

1.0

0.5

1.3

60dB @DC-745MHz                        60dB @845-2500MHz

N Female

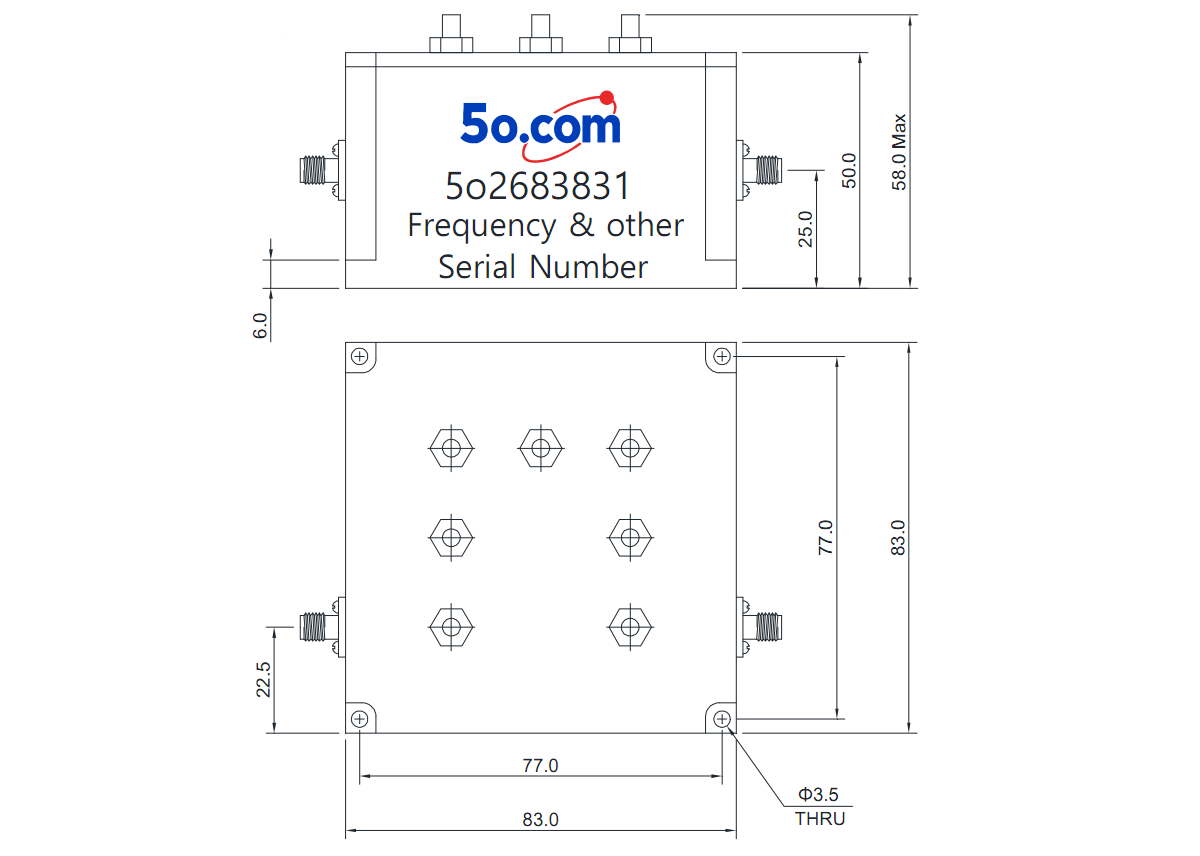

Dimension

83*83*58mm

Impedance

50Ω

Power

10W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
