    Band Pass Filter 1616 ~ 1627MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RK Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5O2680115016161627SK

    1616~1627

    2.5

    1.5

    1.3

    35dB @DC~1610MHz

    35dB @1630~3000MHz

    SMA Female

    5O2680115016161627NK

    1616~1627

    2.5

    1.5

    1.3

    35dB @DC~1610MHz

    35dB @1630~3000MHz

    N Female

    Basic SpeciKications

    Dimension

    80*115*43mm

    Impedance

    50Ω

    Power

    30W

    Operating Temperature

    -20~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

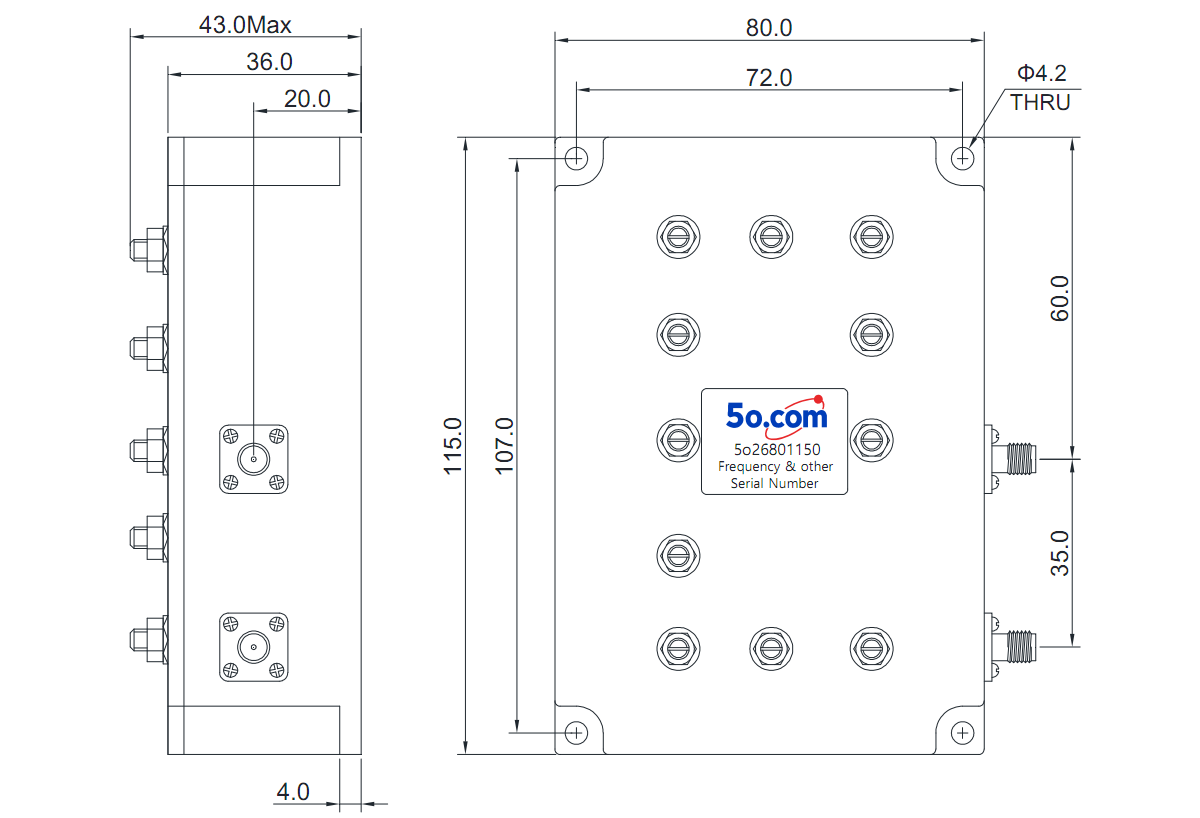

    Overall Dimension(mm)








    Tolerances: ±2% unless otherwise stated.
