    Band Pass Filter 13.5 ~ 17.5GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Model Number

    Pass Band

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2676150135175SK

    13.5 ~ 17.5

    2.5

    1.8

    50dB@DC~13.0GHz

    50dB@18.0~23.0GHz

    SMA Female

    Basic Specifications

    Dimension

    76.5*15*8mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

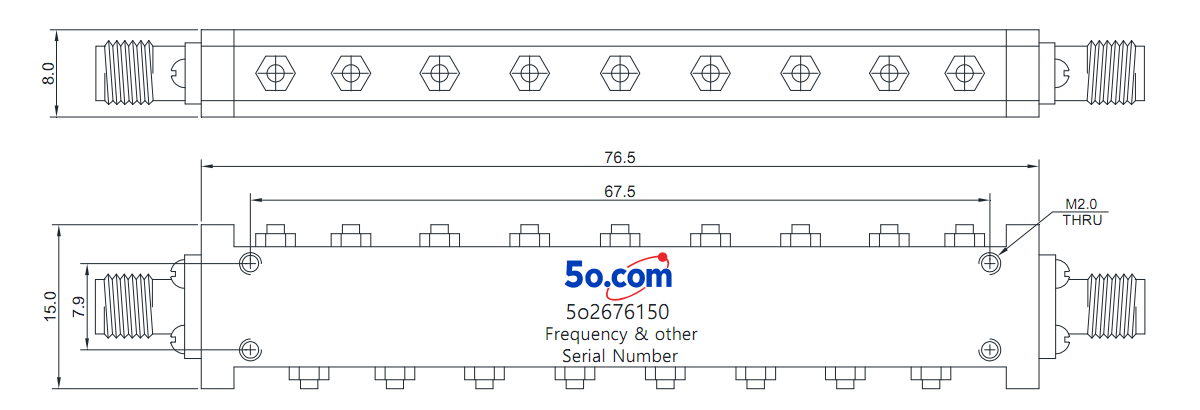

    Overall Dimension(mm)



    Tolerances: ±2% unless otherwise stated.
