Band Pass Filter 12.0 to 18.0GHz 5o2674180

Band Pass Filter 12.0 ~ 18.0GHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Model Number

Pass Band

(GHz)

Insertion Loss
Max(dB)

Ripple

in-band

Max(dB)

VSWR
Max

Rejection

Connector

Type

5o26741801218SK

12.0 ~ 18.0

1.5

1.0

1.7

60dB @DC~11.0GHz

60dB @19.0~22.0GHz

SMA Female

5o26741801218SJTSK

12.0 ~ 18.0

1.5

1.0

1.7

60dB @DC~11.0GHz

60dB @19.0~22.0GHz

SMA Male to SMA Female

Basic Specifications

Size (mm)	74187	Impedance	50Ω
Power(W)	5	Operating Temp	-30 ~ +70℃
Appearance color	Black	Storage temperature	-55~+125℃

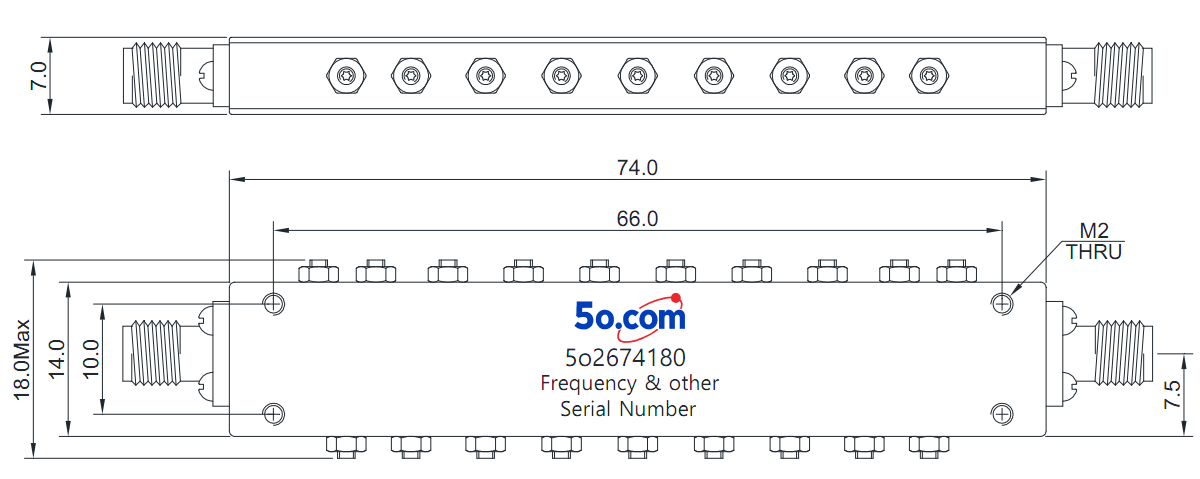

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
