     Band Pass Filter 220 ~ 230MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o267373022342248BK

    223.4 ~ 224.8

    3.5

    1.3

    60dB @214.1MHz & 234.1MHz  35dB @219.8MHz & 228.4MHz

    BNC Female

    5o267373022342248NK

    223.4 ~ 224.8

    3.5

    1.3

    60dB @214.1MHz & 234.1MHz  35dB @219.8MHz & 228.4MHz

    N Female

    5o267373022792289BK

    227.9 ~ 228.9

    3.5

    1.3

    35dB @224.1MHz & 232.7MHz  10dB @226.1MHz & 230.7MHz

    BNC Female

    5o267373022792289SK

    227.9 ~ 228.9

    3.5

    1.3

    35dB @224.1MHz & 232.7MHz  10dB @226.1MHz & 230.7MHz

    SMA Female

    Basic Specifications

    Dimension

    73*73*50mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

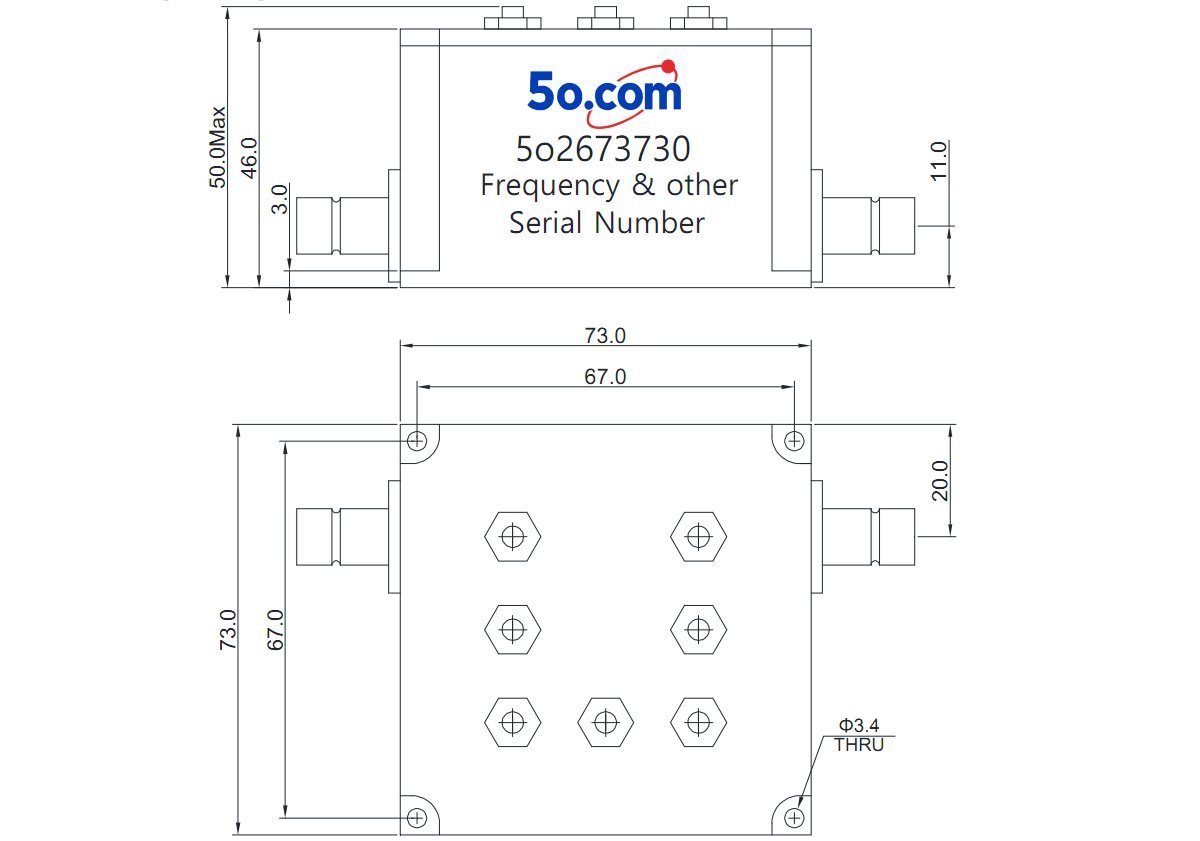

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
