     Band Pass Filter 5700 ~ 5850MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band Range

    Insertion Loss
      Max(dB)

    Ripple
      Max

    (dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o267250157005850SK

    5700 ~ 5850

    0.5

    0.4

    1.3

    30dB@DC~5500MHz

    30dB@6000~10000MHz

    SMA Female

    5o267250157005850NK

    5700 ~ 5850

    0.5

    0.4

    1.3

    30dB@DC~5500MHz

    30dB@6000~10000MHz

    N Female

    Basic Specifications

    Dimension

    72*50*11mm

    Impedance

    50Ω

    Power

    20W

    Operating Temperature

    -40 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

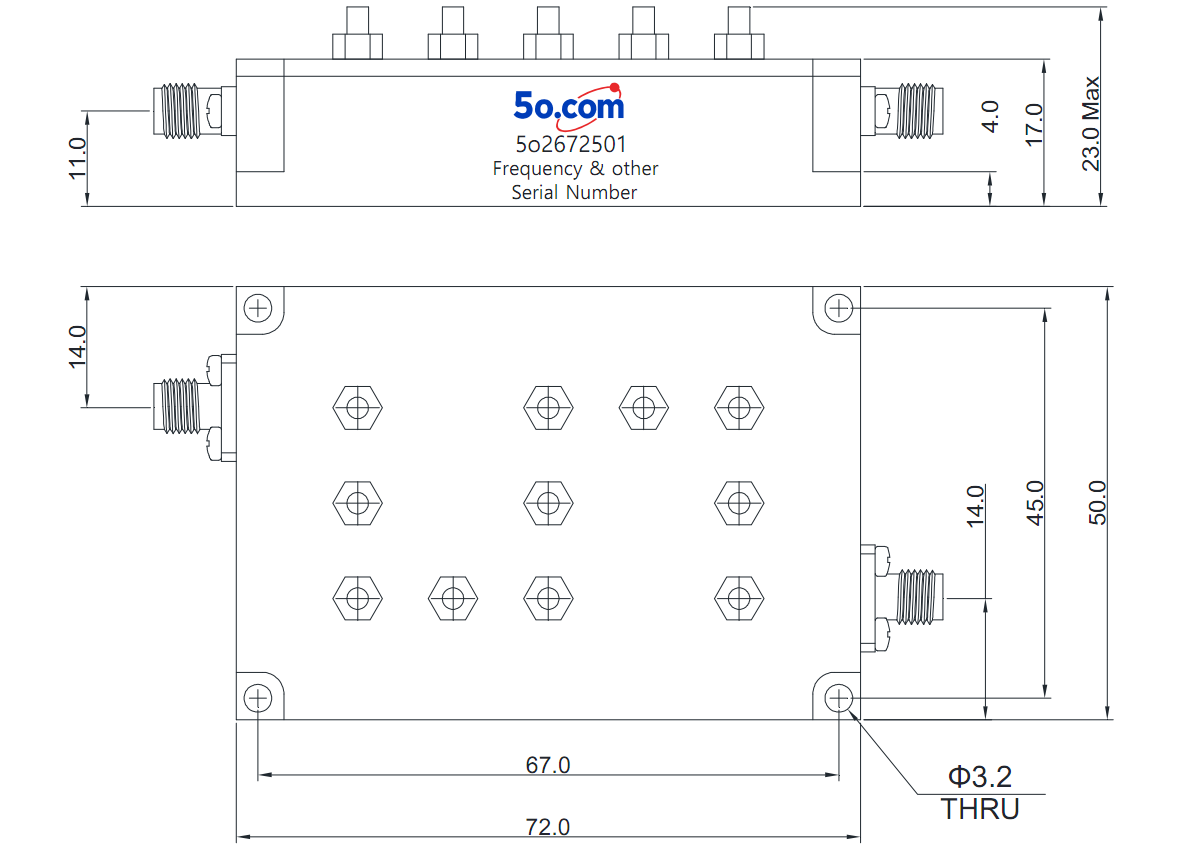

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
