    Band Pass Filter 4.0 ~ 7.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion  Loss Max

    (dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o266535049005050SK

    4900 ~ 5050

    3.0

    1.5

    30dB @ 4850MHz & 5100MHz

    SMA Female

    5o266535051005200SK

    5100 ~ 5200

    3.0

    1.5

    30dB @ 5050MHz & 5250MHz

    SMA Female

    Basic Specifications

    Dimension

    65*35*16mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -40 ~ +85℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

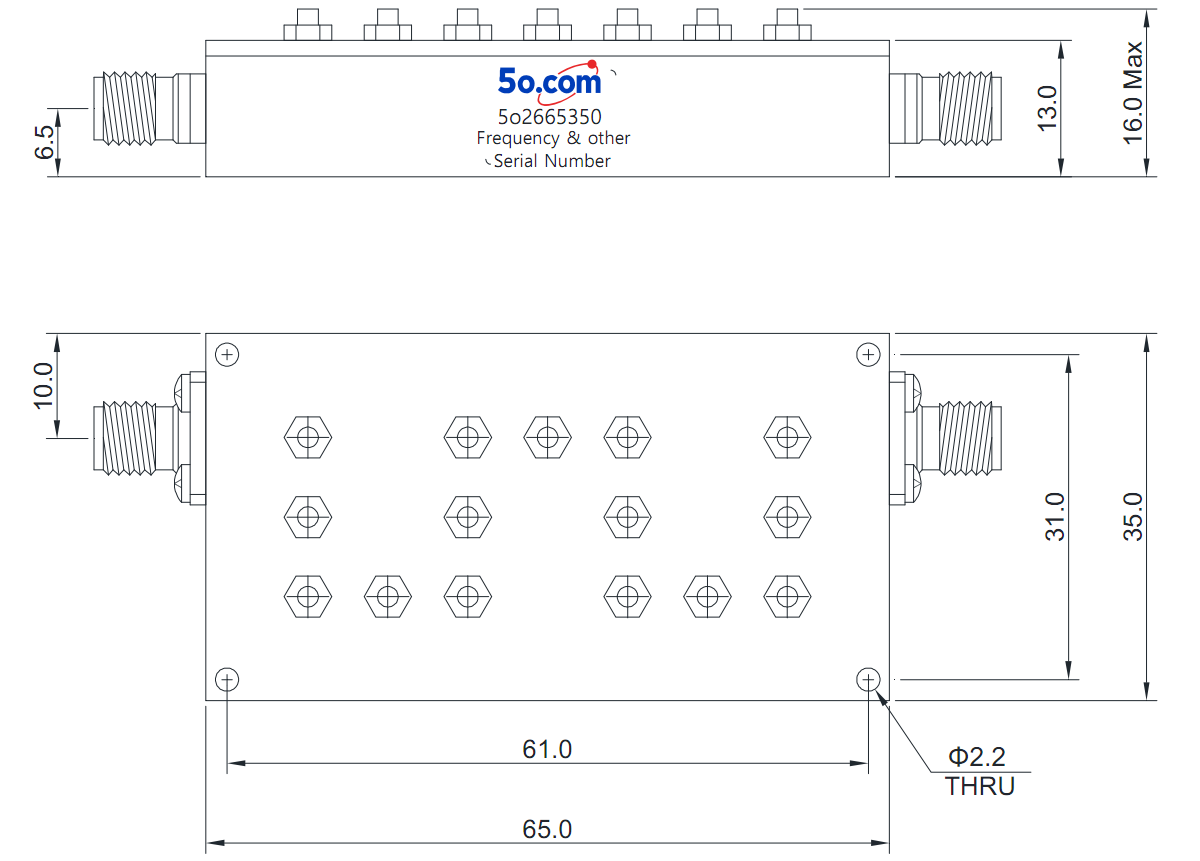

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
