Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

IP Grade

Connector

Type

5o2664640863870SK

863 ~ 870

1.0

0.2

1.22

55dB @DC~833MHz                                      55dB   @903~3000MHz

IP67

SMA Female

5o2664640863870NK

863 ~ 870

1.0

0.2

1.22

55dB @DC~833MHz                                      55dB   @903~3000MHz

IP67

N Female

5o2664640863870NKNJ

863 ~ 870

1.0

0.2

1.22

55dB @DC~833MHz                                      55dB   @903~3000MHz

IP67

N Female to N Male

5o2664640863870SKNK

863 ~ 870

1.0

0.2

1.22

55dB @DC~833MHz                                      55dB   @903~3000MHz

IP67

SMA Female to N Female

5o2664640915928SK

915 ~ 928

1.0

0.3

1.3

50dB @DC~885MHz
  50dB @958~3000MHz
  43dB @885~895MHz
  43dB @948~958MHz

IP67

SMA Female

5o2664640915928NK

915 ~ 928

1.0

0.3

1.3

50dB @DC~885MHz
  50dB @958~3000MHz
  43dB @885~895MHz
  43dB @948~958MHz

IP67

N Female

5o2664640915928NJNK

915 ~ 928

1.0

0.3

1.3

50dB @DC~885MHz
  50dB @958~3000MHz
  43dB @885~895MHz
  43dB @948~958MHz

IP67

N Male to N Female

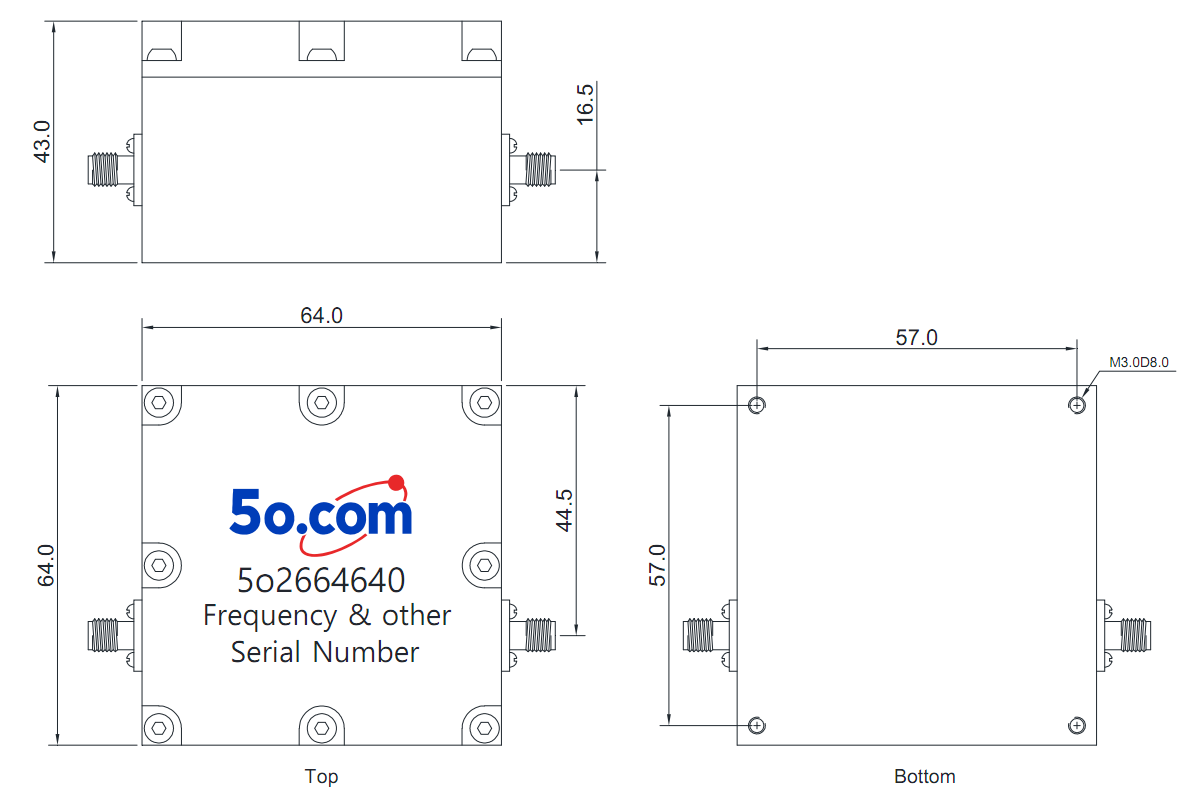

Dimension

64*64*43mm

Impedance

50Ω

Power

30W

Operating Temperature

-30 ~ +70℃

Appearance Color

Black

Storage Temperature

-55~+125℃
