    Band Pass Filter 3.0 ~ 10.0GHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o2660320310SK

    3.0 ~ 10.0

    1.5

    1.8

    50dB@DC~1.5GHz

    50dB@11.5~17.0GHz

    SMA Female

    Basic Specifications

    Dimension

    60*32*11mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

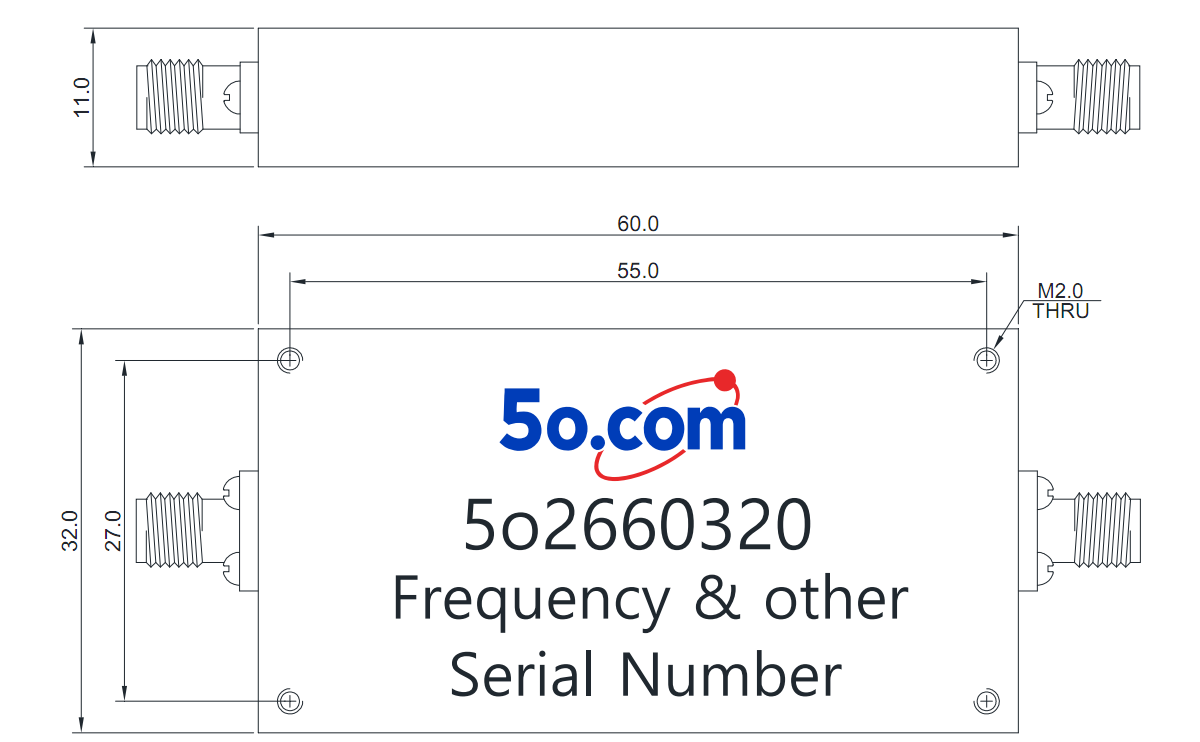

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
