     Band Pass Filter 225 ~ 400MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2660300225400SK

    225 ~ 400

    1.5

    1.2

    1.5

    40dB@DC~200 MHz                                          40dB@500~1000MHz

    SMA Female

    Basic Specifications

    Dimension

    60*30*20mm

    Impedance

    50Ω

    Power

    60W

    Operating   Temperature

    -30 ~ +70℃

    Appearance   Color

    Black

    Storage   Temperature

    -55~+125℃

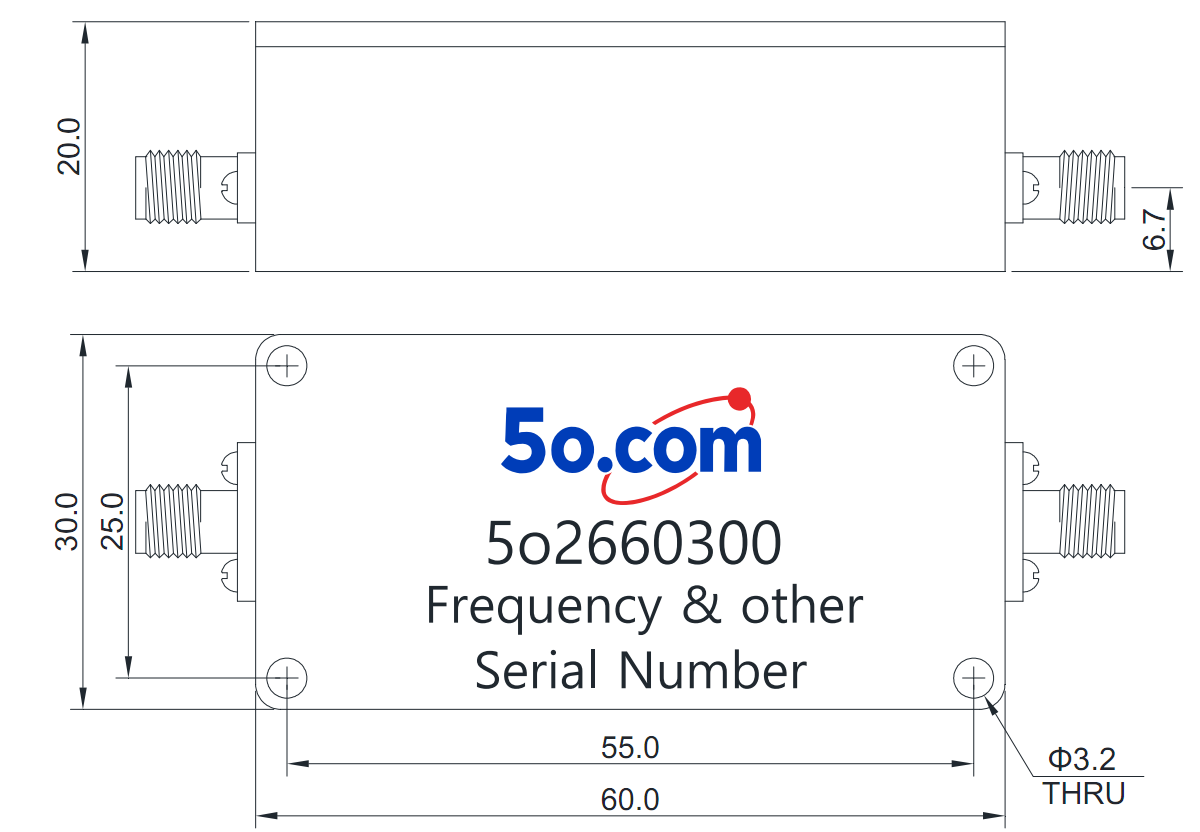

    Overall Dimension(mm)






    Tolerances: ±2% unless otherwise stated.
