     Band Pass Filter 3800 ~ 4000MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o266023038004000SK

    3800 ~ 4000

    1.5

    1.5

    40dB @DC-3650MHz

    40dB @4150-8000MHz

    SMA Female

    Basic Specifications

    Dimension

    60*23*10mm

    Impedance

    50Ω

    Power

    30W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

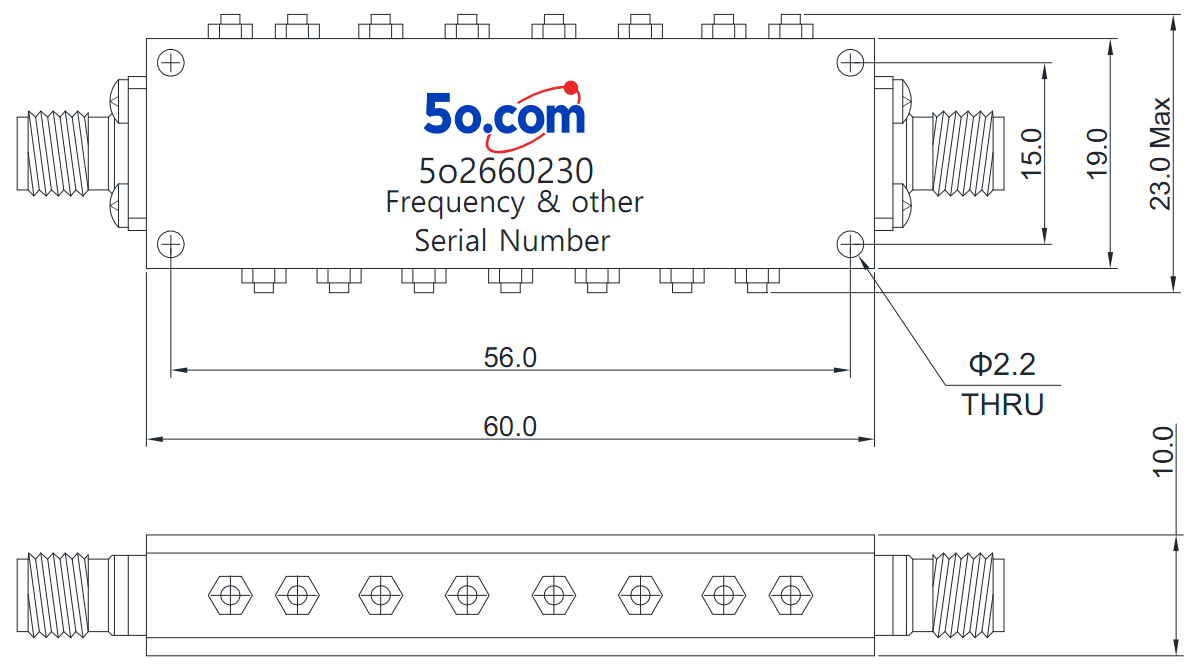

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
