Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

VSWR Max

Rejection

Connector

Type

5o265959014341436NK

1434 ~ 1436

1.5

1.35

40dB @1461.975MHz

N Female

5o265959014609751462975NK

1460.975 ~ 1462.975

1.5

1.35

40dB @1435MHz

N Female

5o265959014851487NK

1485 ~ 1487

1.5

1.35

40dB @1512.975MHz

N Female

5o265959015129751513975NK

1512.975 ~ 1513.975

1.5

1.35

40dB @1486MHz

N Female

5o265959015501560SK

1550 ~ 1560

2

1.5

20dBc @1525MHz                               20dBc @1585MHz

SMA Female

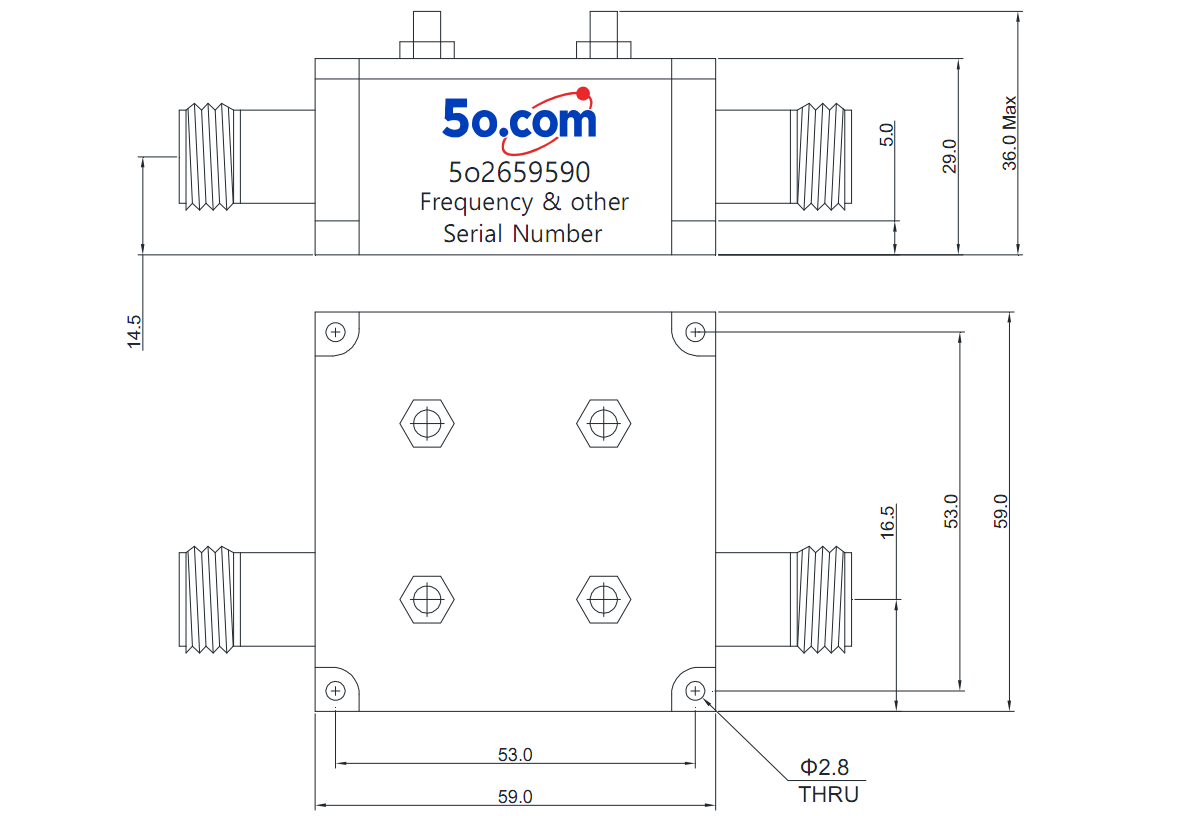

Dimension

59*59*36mm

Impedance

50Ω

Power

10W

Operating   Temperature

-40 ~ +85℃

Appearance   Color

Black

Storage   Temperature

-55~+125℃
