Band Pass Filter 32.0 to 38.0GHz 5o2650140

Band Pass Filter 32.0 ~ 38.0GHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Model Number

Pass Band

(GHz)

Insertion Loss
Max(dB)

Ripple

(dB)

VSWR
Max

Rejection

Connector

Type

5o26501403238KK

32.0 ~ 38.0

1.35

0.53

1.3

80dB @DC~30.35GHz

80dB @39.92~67GHz

50dB @30.35~31GHz

45dB @39~39.92GHz

2.92mm Female

Basic Specifications

Dimension	501410mm	Impedance	50Ω
Power	5W	Operating Temperature	-30 ~ +70℃
Appearance Color	Black	Storage Temperature	-55~+125℃

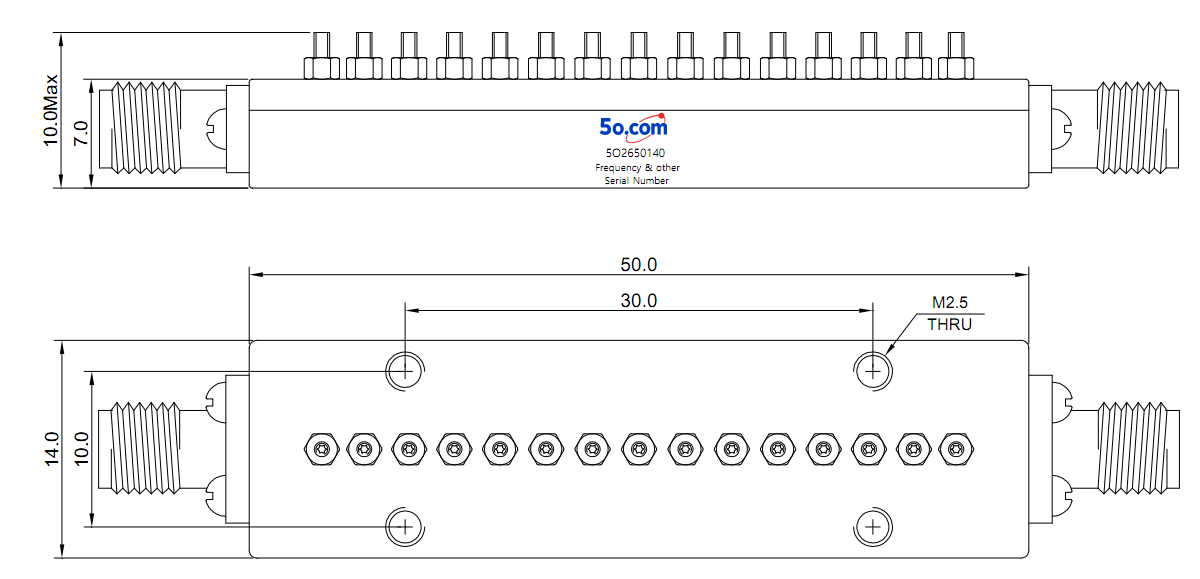

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
