Band Pass Filter 6.0 to 9.0GHz 5o2649220

Band Pass Filter 6.0 ~ 9.0GHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Pass Band (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Rejection

Connector

Type

5o264922068SK

6.0 ~ 8.0

1.5

1.5

50dB @Fc±1000MHz

SMA Female

5o264922079SK

7.0 ~ 9.0

1.5

1.5

50dB @Fc±1000MHz

SMA Female

Basic Specifications

Dimension	492210.5mm	Impedance	50Ω
Power	10W	Operating Temperature	-40 ~ +85℃
Appearance Color	Black	Storage Temperature	-55~+125℃

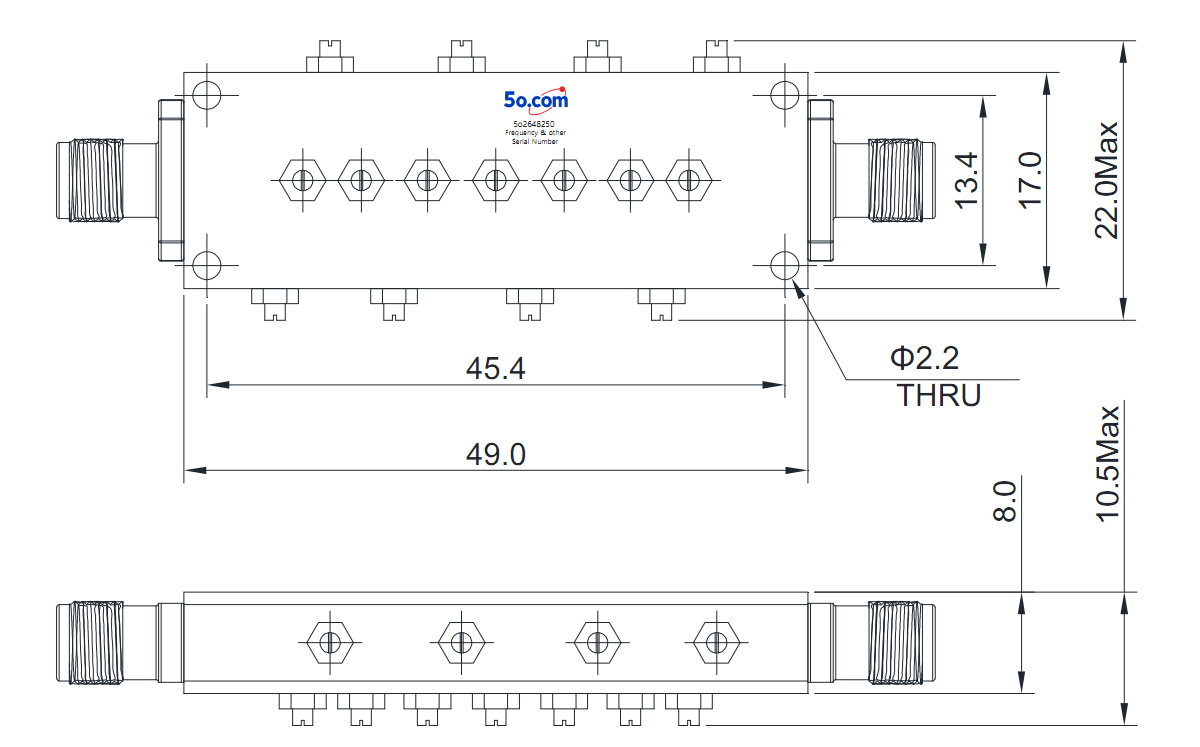

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
