    Band Pass Filter 10.0 ~ 18.0GHz

     Application

       ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Model Number

    Pass Band

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o26481511018SK

    10.0 ~ 18.0

    1.5

    2.0

    45dB@DC~7.0GHz

    45dB@21.0~24.0GHz

    SMA Female

    Basic Specifications

    Dimension

    48.2*15*11mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

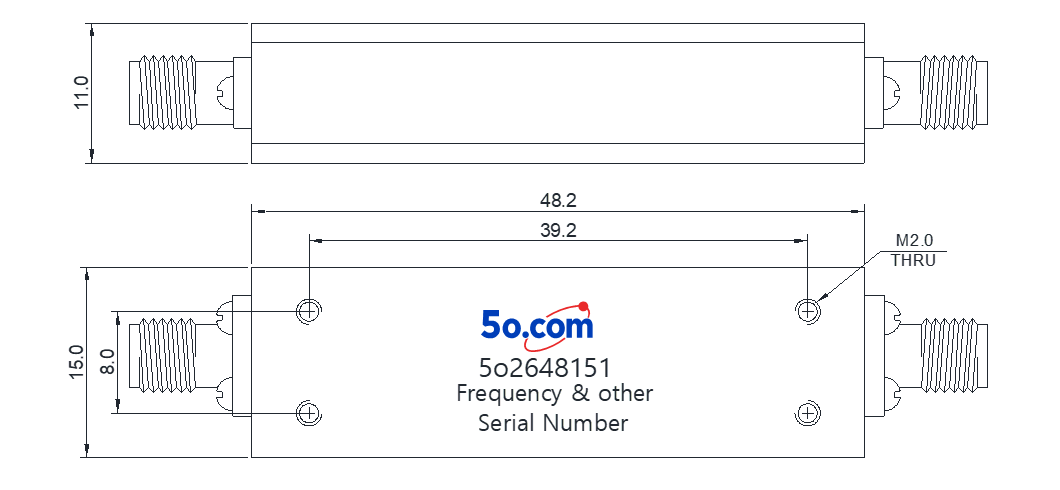

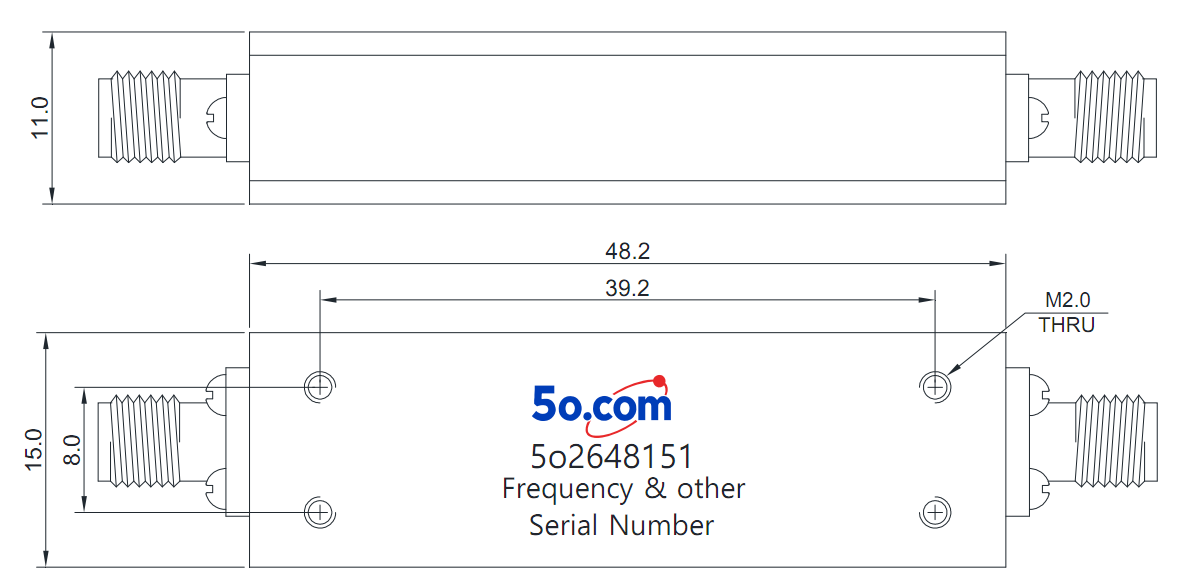

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
