     Band Pass Filter 33.0 ~ 37.0GHz

     Application



    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Model Number

    Pass Band

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o26481413337KK

    33.0 ~ 37.0

    3.0

    2.0

    30dB@DC~32.0GHz

    30dB@38.0~40.0GHz

    2.92mm Female

    Basic Specifications

    Dimension

    48.3*14*6.5mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

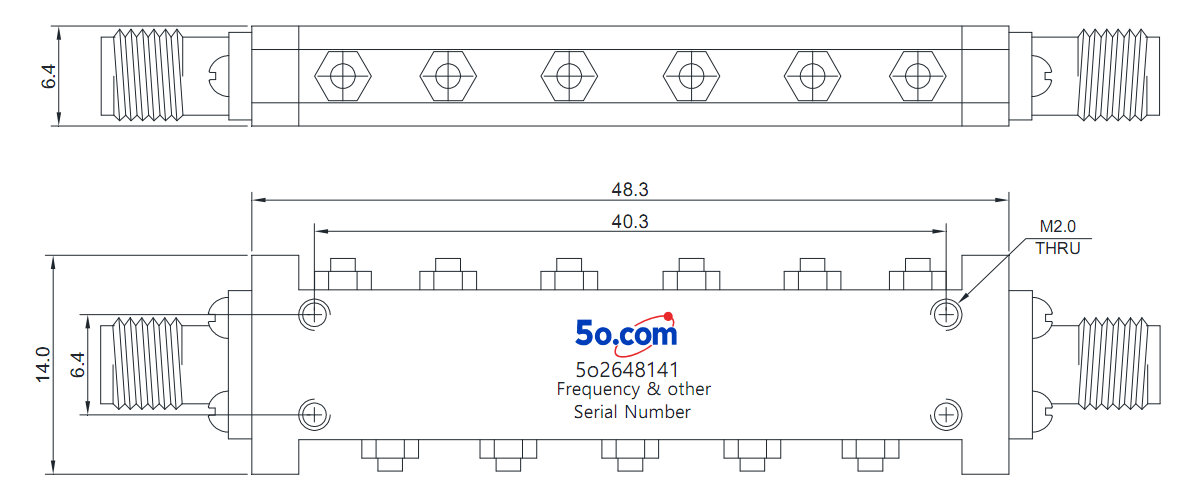

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
