     Band Pass Filter 15.0 ~ 20.0GHz

     Application



    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Model Number

    Pass Band

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o26481401520KK

    15.0 ~ 20.0

    1.5

    1.8

    70dB@DC~12.0GHz

    70dB@23.0~26.0GHz

    2.92mm Female

    Basic Specifications

    Dimension

    48.8*14.5*7.6mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

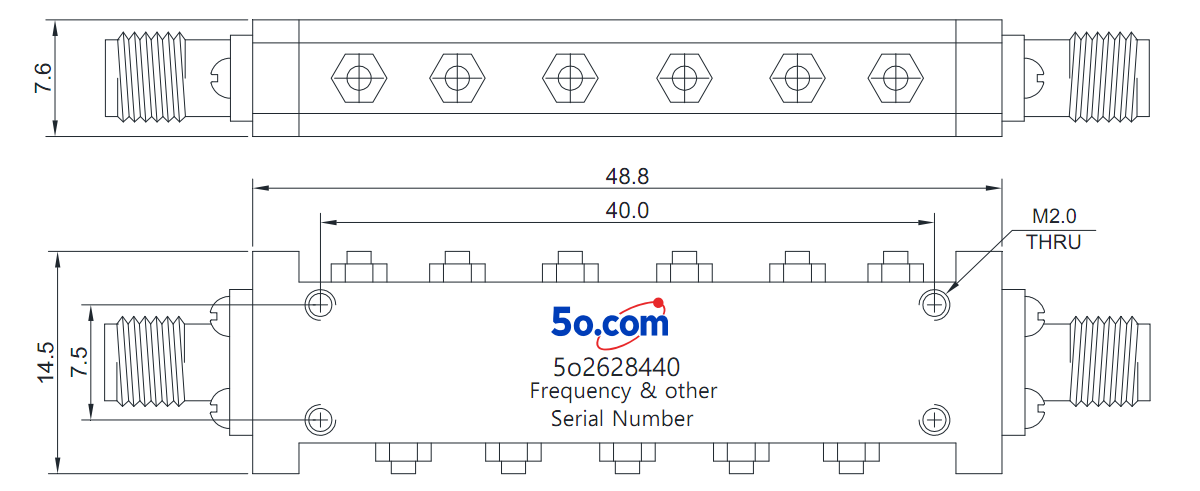

    Overall Dimension(mm)


                          Tolerances: ±2% unless otherwise stated.
