     Band Pass Filter 6500 ~ 7500MHz

     Application




    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o264721065007500SK

    6500 ~ 7500

    1.5

    1.8

    30dB @DC~6000MHz

    30dB @8000MHz

    SMA Female

    Basic Specifications

    Dimension

    47*21*8mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

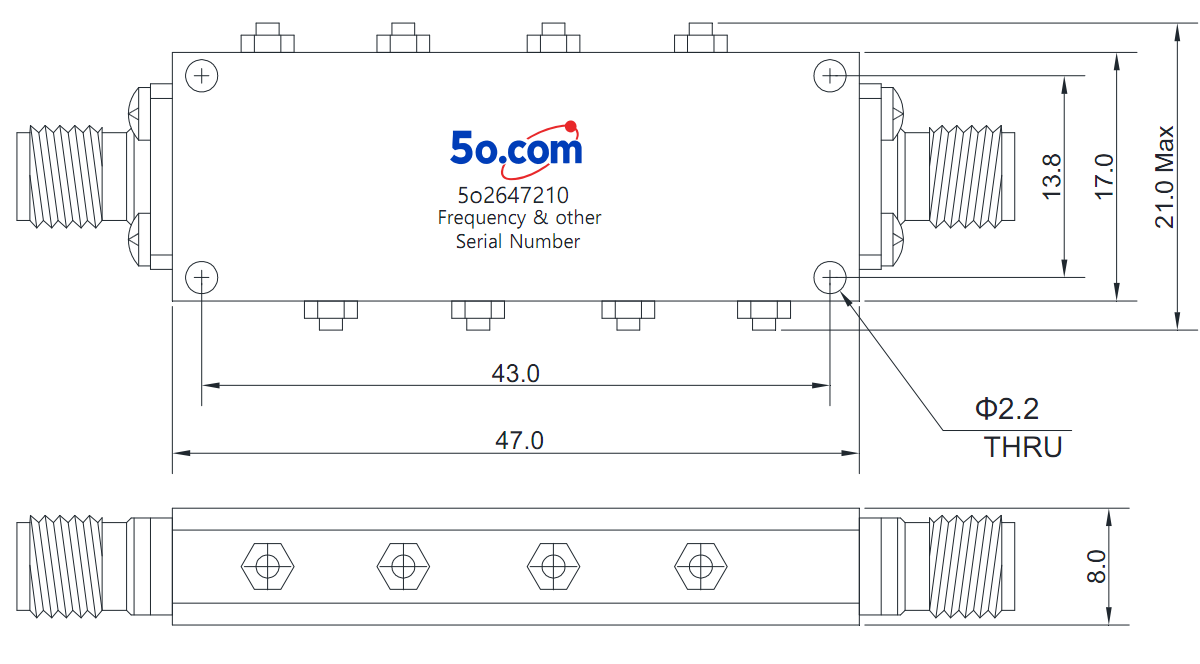

    Overall Dimension(mm)



    Tolerances: ±2% unless otherwise stated.
