    Band Pass Filter 6735 ~ 6935MHz

     Application




    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss
      Max(dB)

    Ripple
      Max

    VSWR
      Max

    Rejection

    Connector

    Type

    5o264630067356935SK

    6735 ~ 6935

    0.8

    0.4

    1.35

    30dB@DC~6535MHz

    30dB@7135~9000MHz

    SMA Female

    Basic Specifications

    Dimension

    46*30*20mm

    Impedance

    50Ω

    Power

    20W

    Operating   Temperature

    -30 ~ +65℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

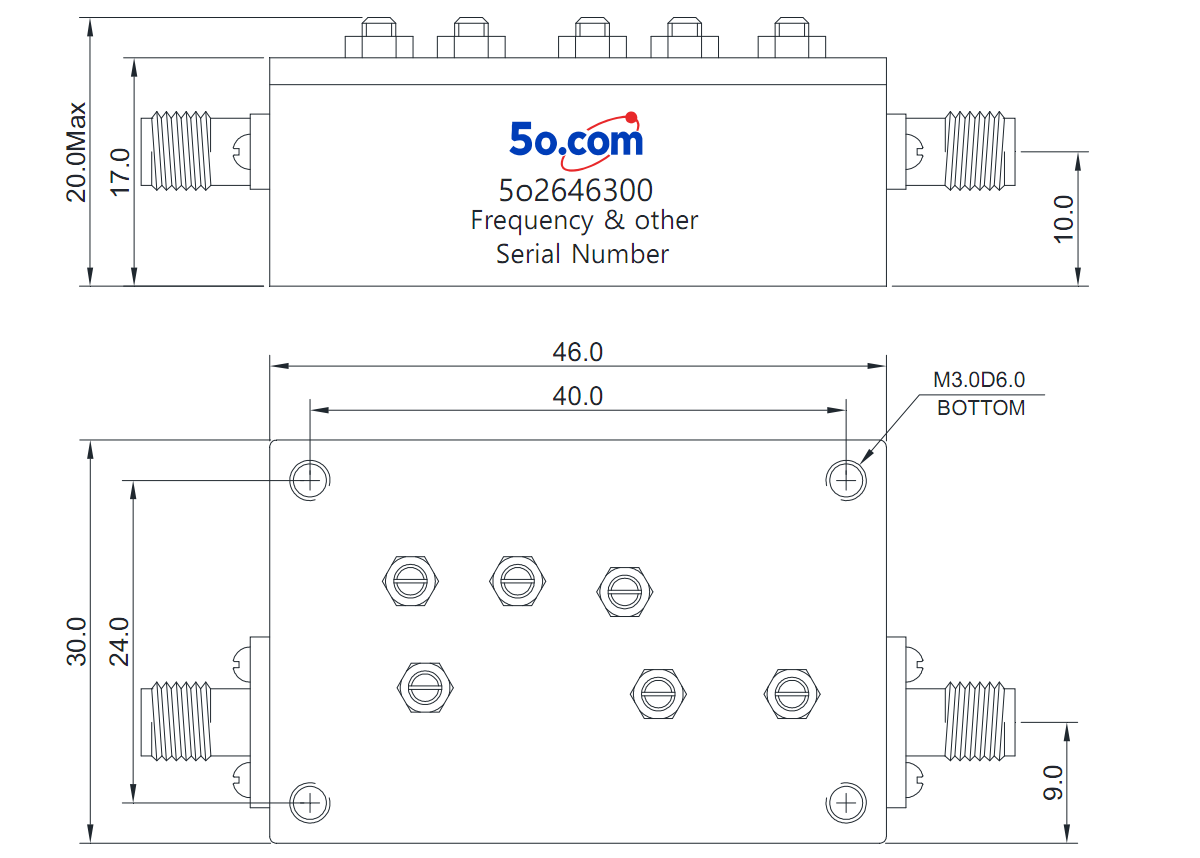

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
