    Band Pass Filter 3300 ~ 3900MHz

     Application



    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss
      Max(dB)

    Ripple

    in-band

    Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o264314033003900SK

    3300 ~ 3900

    1.0

    0.8

    1.45

    30dB @DC~2.6GHz

    16dB @4.4~6.0GHz

    40dB @6.0~9.9GHz

    SMA Female

    Basic Specifications

    Dimension

    43*41*22mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +105℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

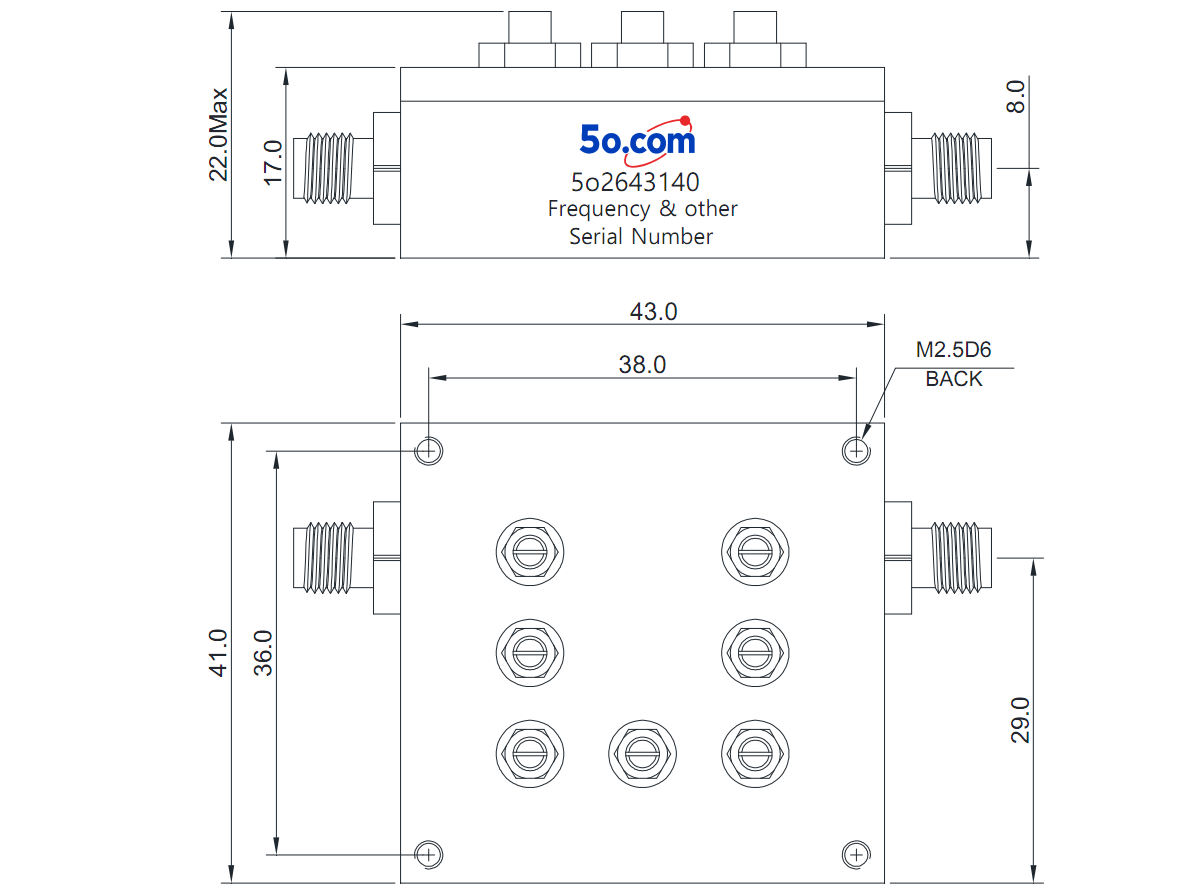

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
