    Band Pass Filter 200 ~ 400MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2640120212222SK

    212 ~ 222

    3.0

    1.5

    20dB @187MHz                            20dB @247MHz

    SMA Female

    5o2640120384394SK

    384 ~ 394

    3.5

    1.5

    20dB @359MHz                          20dB @419MHz

    SMA Female

    Basic Specifications

    Dimension

    40.4*12*10mm

    Impedance

    50Ω

    Power

    2W

    Operating   Temperature

    -40 ~ +85℃

    Appearance   Color

    Black

    Storage   Temperature

    -55~+125℃

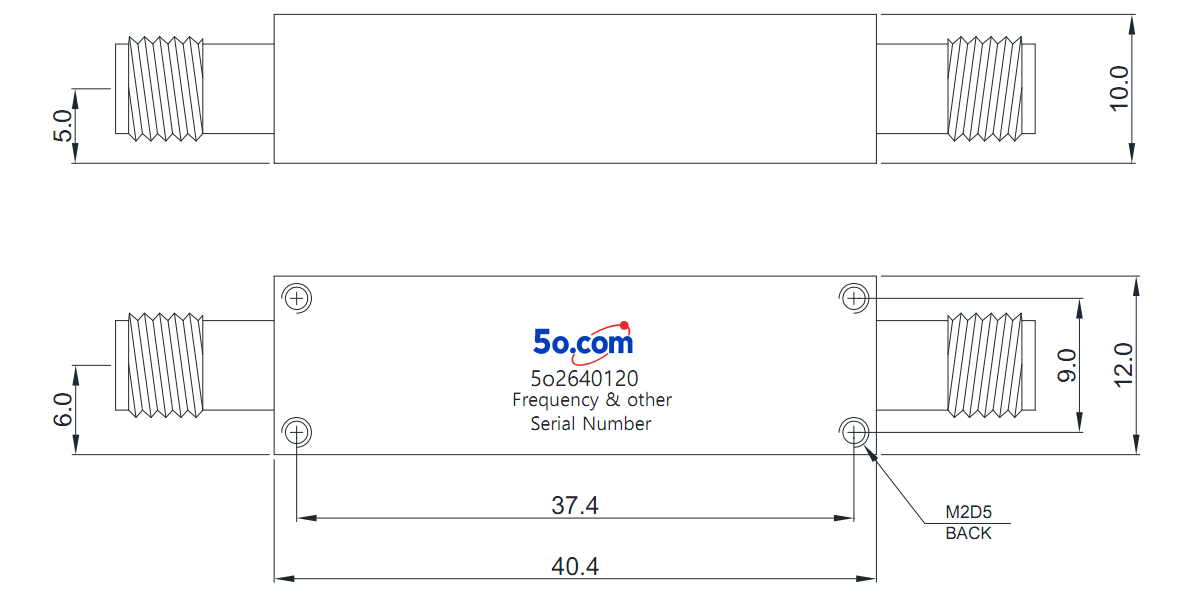

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
