    Band Pass Filter 32.0 ~ 36.0GHz

     Application



    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Model Number

    Pass Band

    (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Rejection

    Connector

    Type

    5o26371413236KK

    32.0 ~ 36.0

    2.5

    1.8

    60dB@DC~28.0GHz

    60dB@40.0~48.0GHz

    50dB@48.0~50.0GHz

    2.92mm Female

    Basic Specifications

    Dimension

    37*14*6.5mm

    Impedance

    50Ω

    Power

    10W

    Operating   Temperature

    -40 ~ +70℃

    Appearance   Color

    Black

    Storage Temperature

    -55~+125℃

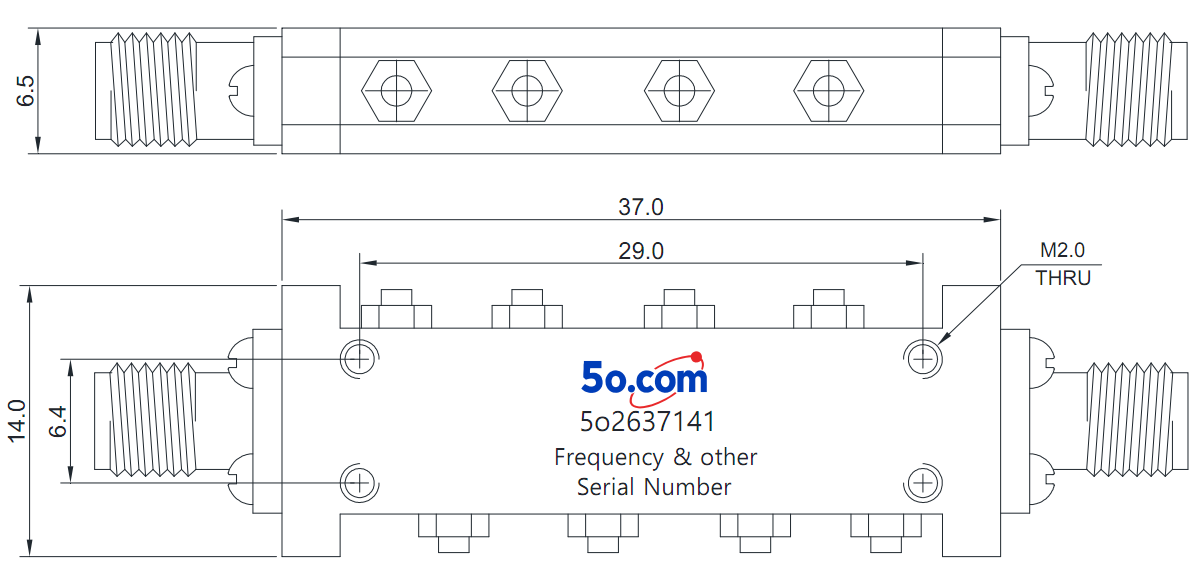

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
