    Band Pass Filter 470 ~ 477MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o263001700470477NK

    470 ~ 477

    2.5

    2.0

    1.3

    80dB@DC~460MHz                             80dB   @480~1000MHz

    N Female

    5o263001700470477SK

    470 ~ 477

    2.5

    2.0

    1.3

    80dB@DC~460MHz                              80dB   @480~1000MHz

    SMA Female

    5o263001700470477NMNK

    470 ~ 477

    2.5

    2.0

    1.3

    80dB@DC~460MHz                             80dB   @480~1000MHz

    N Male to N Female

    Basic Specifications

    Dimension

    300*170*76mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

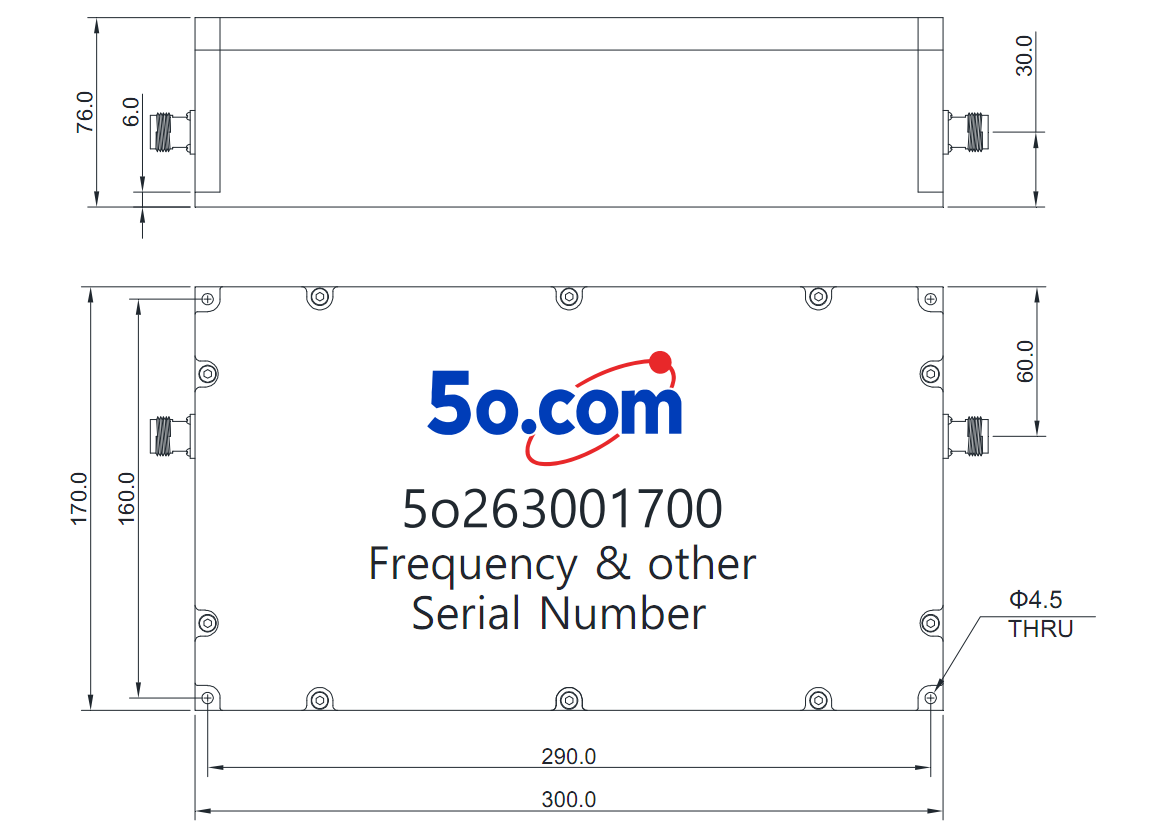

    Overall Dimension(mm)




    Tolerances: ±2% unless otherwise stated.
