Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

VSWR Max

PIM Max

Rejection

Connector

Type

5o262781360824884716K

824 ~ 884

1.5dB@878~884MHz 0.65dB@824~878MHz

1.25

/

70dBc@890~960MHz

7/16 Female

5o262781360824884716KR50

824 ~ 884

1.5dB@878~884MHz 0.65dB@824~878MHz

1.25

/

50dBc@890~960MHz

7/16 Female

5o262781360895960716K

895 ~ 960

1.4dB@897~960MHz 2.0dB@895~897MHz

1.25

143dBc (2x33dBm)

90dBc@DC~840MHz
  50dBc@840~892MHz
  50dBc@990~2000MHz
  25dBc@970~990MHz

7/16 Female

5o262781360895960NK

895 ~ 960

1.4dB@897~960MHz 2.0dB@895~897MHz

1.25

143dBc (2x33dBm)

90dBc@DC~840MHz
  50dBc@840~892MHz
  50dBc@990~2000MHz
  25dBc@970~990MHz

N Female

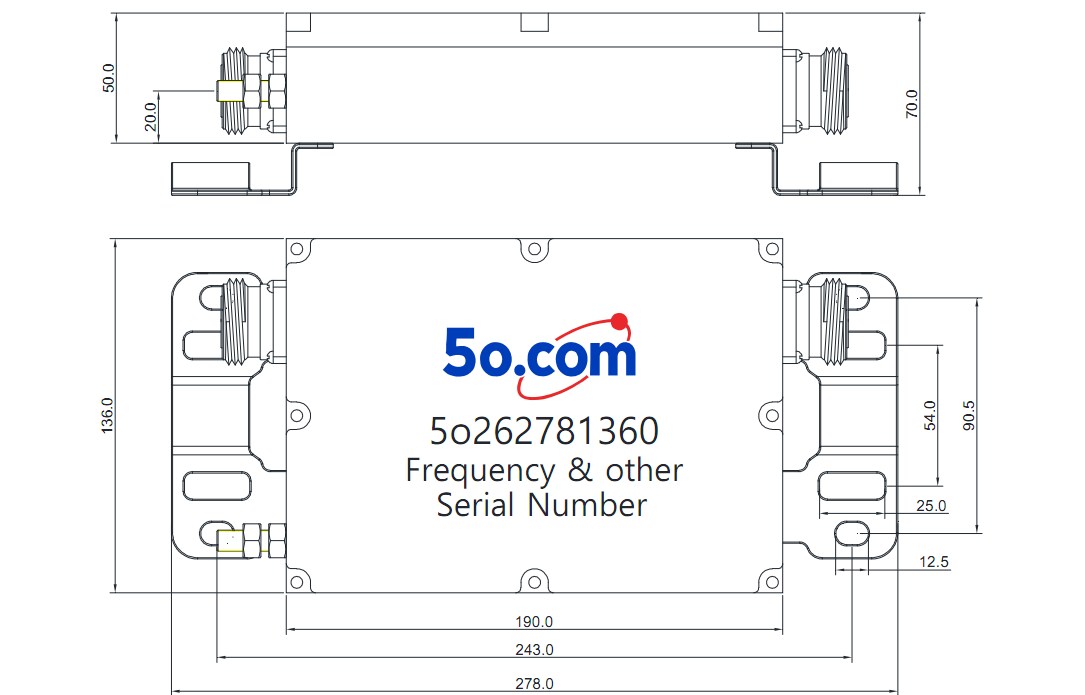

Dimension

278*136*70mm

Impedance

50Ω

Power

60W

Operating Temperature

-20~ + 55℃

Appearance Color

Black

Storage Temperature

-55~+125℃
