    Band Pass Filter 94 ~ 95MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss
      Max(dB)

    Ripple Max (dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2626928809495SK

    94 ~ 95

    1.2

    0.6

    1.3

    40dB @DC~88MHz                                     40dB   @105 ~ 500MHz

    SMA Female

    5o2626928809495NK

    94 ~ 95

    1.2

    0.6

    1.3

    40dB @DC~88MHz                                  40dB @105 ~   500MHz

    N Female

    Basic Specifications

    Dimension

    269*288*120mm

    Impedance

    50Ω

    Power

    10W

    Operating Temperature

    -25 ~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

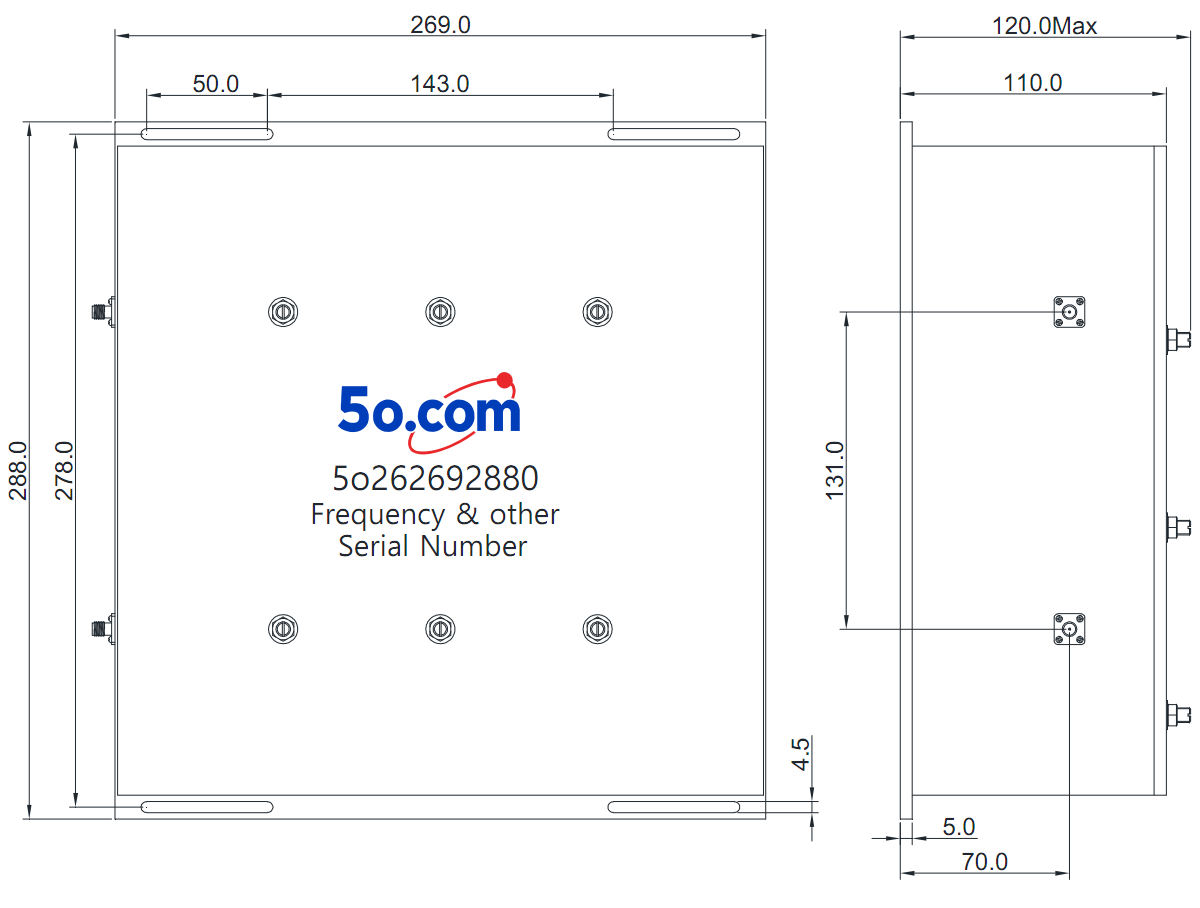

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
