Part Number

Pass Band

(MHz)

Insertion Loss

Max(dB)

VSWR

Max

Rejection

Connector

Type

5o2625016601361385SK

136 ~ 138.5

2.0

1.3

60dB @88~108MHz
40dB @ Fo ±6.5MHz

SMA Female

5o262501660138075138575NK

138.075~138.575

3.5
Ripple 1.5dB

1.3

60dB @88~108MHz

40dB @ Fo ±3.0MHz

N Female

5o2625016601431455NK

143 ~ 145.5

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

N Female

5o2625016601431455NK

143 ~ 145.5

2.0

Ripple 1.5dB

1.5

40dB @138MHz

40dB @160MHz

N Female

5o262501660150174NK

150 ~ 174

0.7

1.4

35dB @Fc ±40MHz

N Female

5o262501660153575154075NK

153.575~154.075

3.5

Ripple 1.5dB

1.3

60dB @88~108MHz

40dB @ Fo ±3.0MHz

N Female

5o2625016601565159NK

156.5 ~ 159

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

N Female

5o26250166015741251579125NK

157.4125~157.9125

3.5

Ripple 1.5dB

1.3

60dB @88~108MHz

40dB @ Fo ±3.0MHz

N Female

5o2625016601607516325NK

160.75 ~ 163.25

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

N Female

5o2625016601667516925NK

166.75 ~ 169.25

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

N Female

5o2625016601681705SK

168 ~ 170.5

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

SMA Female

5o2625016601845187NK

184.5 ~ 187

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

N Female

5o2625016601971995SK

197 ~ 199.5

2.0

1.3

60dB @88~108MHz

40dB @ Fo ±6.5MHz

SMA Female

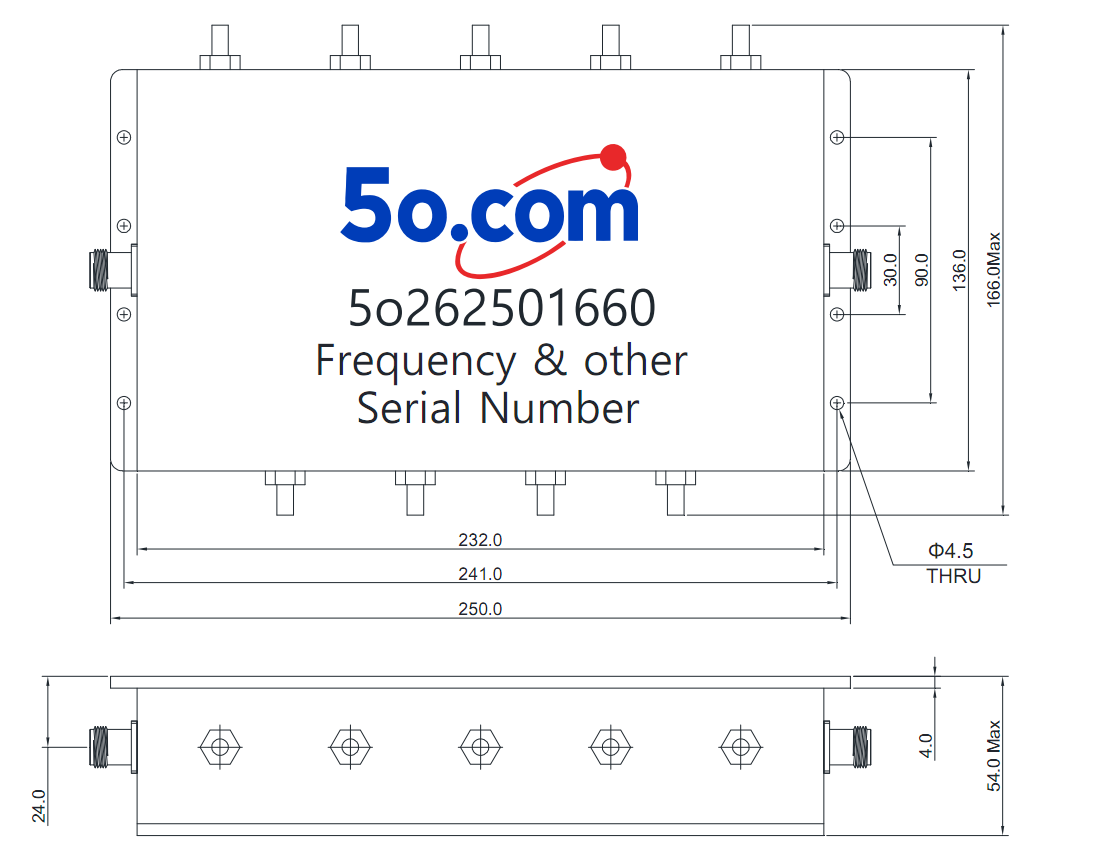

Dimension

250*166*54mm

Impedance

50Ω

Power

100W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
