Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o262201150240270NK

240 ~ 270

1.0

0.8

1.3

80dB @DC~220MHz                                  80dB   @290~1700MHz

N Female

5o262201150240270SK

240 ~ 270

1.0

0.8

1.3

80dB @DC~220MHz                                    80dB   @290~1700MHz

SMA Female

5o262201150290320NK

290 ~ 320

1.0

0.6

1.3

100dB @DC~270MHz                                  100dB   @400~1200MHz

N Female

5o262201150290320SK

290 ~ 320

1.0

0.6

1.3

100dB @DC~270MHz                                       100dB   @400~1200MHz

SMA Female

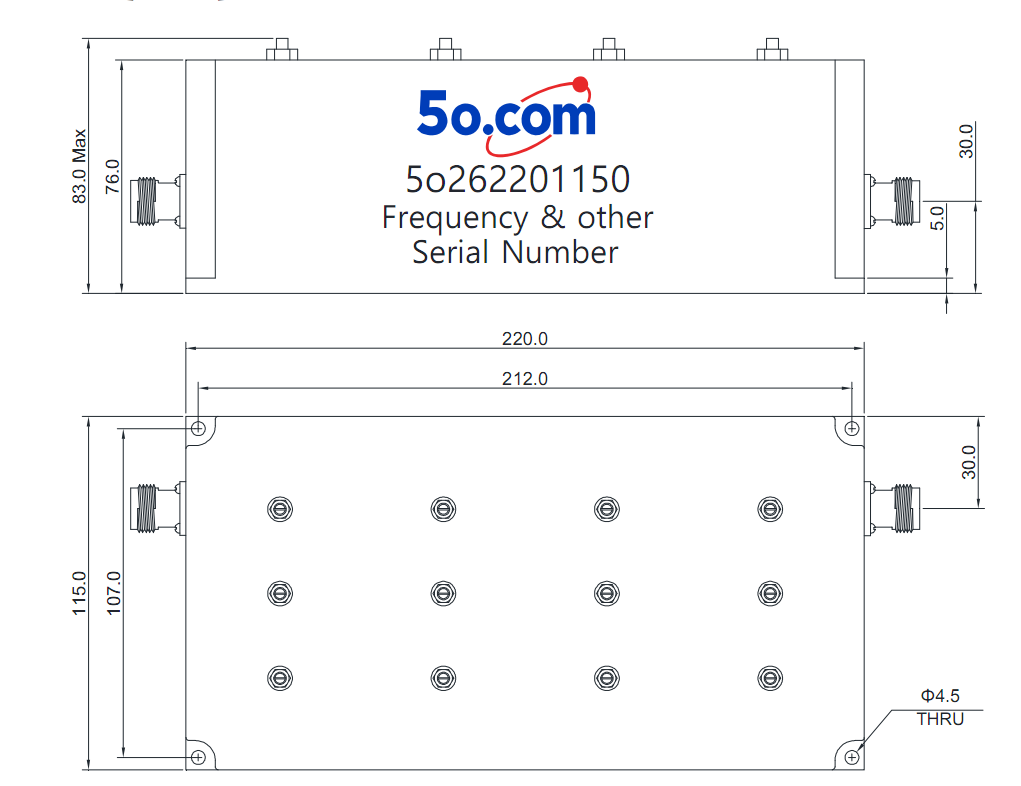

Dimension

220*115*83mm

Impedance

50Ω

Power

100W

Operating Temperature

-30 ~ +70℃

Appearance Color

Black

Storage Temperature

-55~+125℃
