Band Pass Filter 290 to 320MHz 5o262052050

Band Pass Filter 290 ~ 320MHz

Application

▶Wireless communication system.

▶Audio processing, image and data acquisition.

▶Biomedical signal processing.

▶Radar and sensors.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Pass Band

(MHz)

Insertion Loss
Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o262052050290320716K

290 ~ 320

1.0

0.5

1.25

105dB @230~270MHz
105dB @340~380MHz
70dB @DC~230MHz
70dB @380~1650MHz

7/16 Female

5o262052050290320NK

290 ~ 320

1.0

0.5

1.25

105dB @230~270MHz
105dB @340~380MHz
70dB @DC~230MHz
70dB @380~1650MHz

N Female

Basic Specifications

205*205*80mm

Impedance

50Ω

Power

Avg: 300W

Peak: 1500W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃

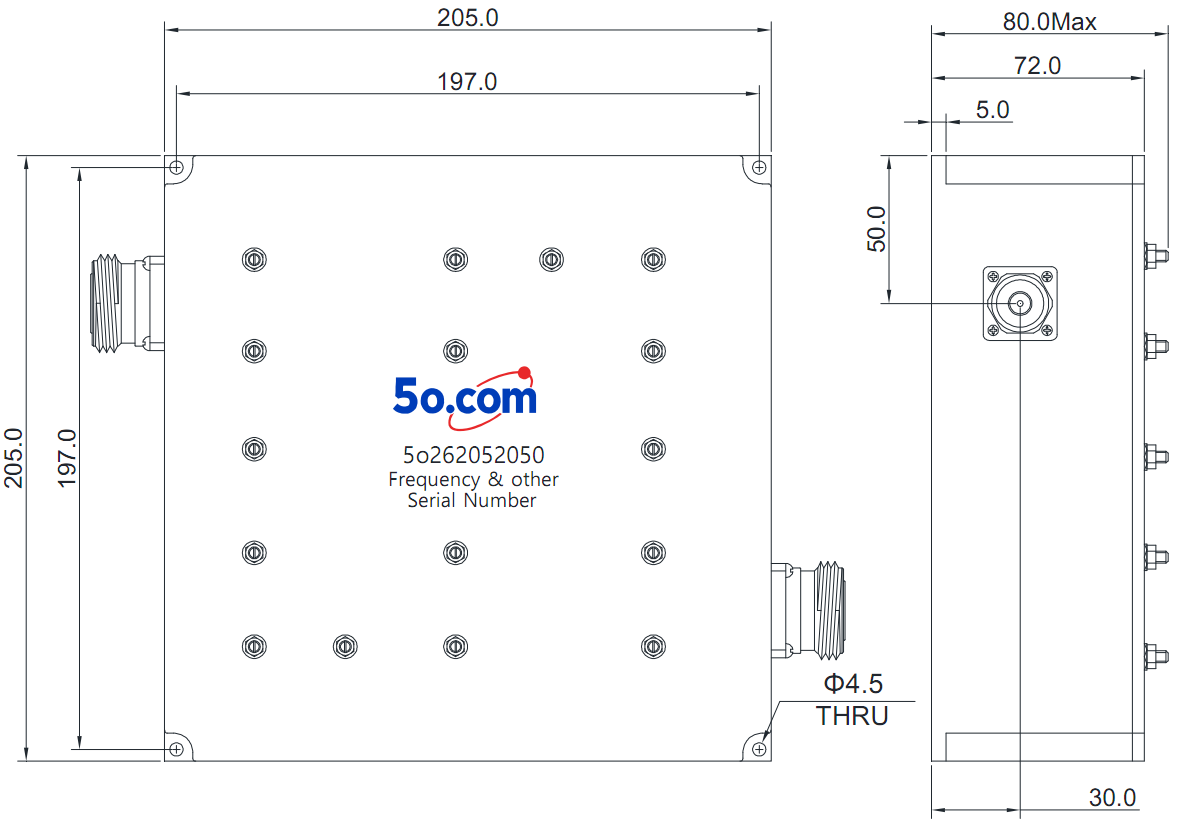

Overall Dimension(mm)

Tolerances: ±2% unless otherwise stated.
