    Band Pass Filter 2545 ~ 2655MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band

    (MHz)

    Insertion Loss
      Max(dB)

    Ripple in-band Max(dB)

    VSWR Max

    Rejection

    Connector

    Type

    5o2615565025452655SK

    2545~2655

    1.5

    0.8

    1.3

    60dB @DC~2525MHz
      60dB @2675~6000MHz

    SMA Female

    5o2615565025452655NK

    2545~2655

    1.5

    0.8

    1.3

    60dB @DC~2525MHz
      60dB @2675~6000MHz

    N Female

    Basic Specifications

    Dimension

    155*65*34mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20~ +60℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

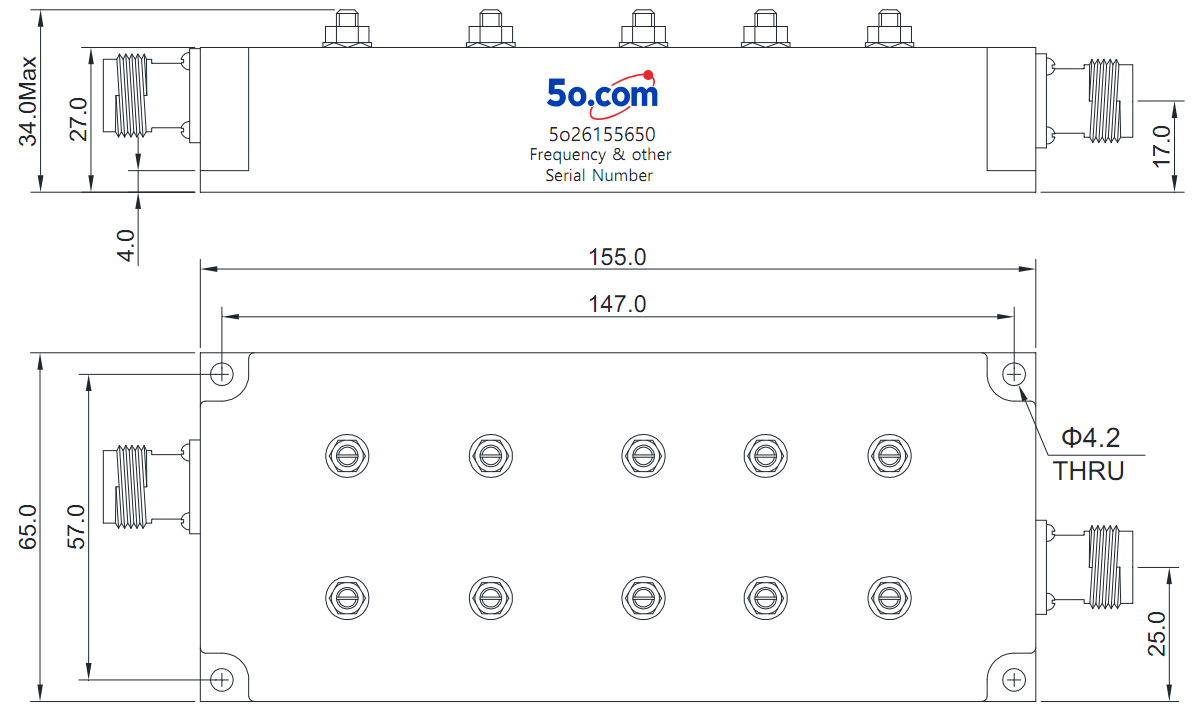

    Overall Dimension(mm)


    Tolerances: ±2% unless otherwise stated.
