    Band Pass Filter 3420 ~ 3510MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Pass Band (MHz)

    Insertion Loss Max

    (dB)

    Ripple   Max

    (dB)

    Return   Loss Min

    (dB)

    Rejection

    IMD3

    Connector

    Type

    5o2613065034203510NKNJ

    3420~3510

    2.0

    1.5

    15

    60dB@DC~3410MHz

    60dB@3520~4000MHz

    50dB@4000~6000MHz

    -150dBc@2x43dBm

    N Female to N Male

    5o2613065034203510NK

    3420~3510

    2.0

    1.5

    15

    60dB@DC~3410MHz

    60dB@3520~4000MHz

    50dB@4000~6000MHz

    -150dBc@2x43dBm

    N Female

    5o2613065034203510SK

    3420~3510

    2.0

    1.5

    15

    60dB@DC~3410MHz

    60dB@3520~4000MHz

    50dB@4000~6000MHz

    -150dBc@2x43dBm

    SMA Female

    Basic Specifications

    Dimension

    130*65*39mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -25 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

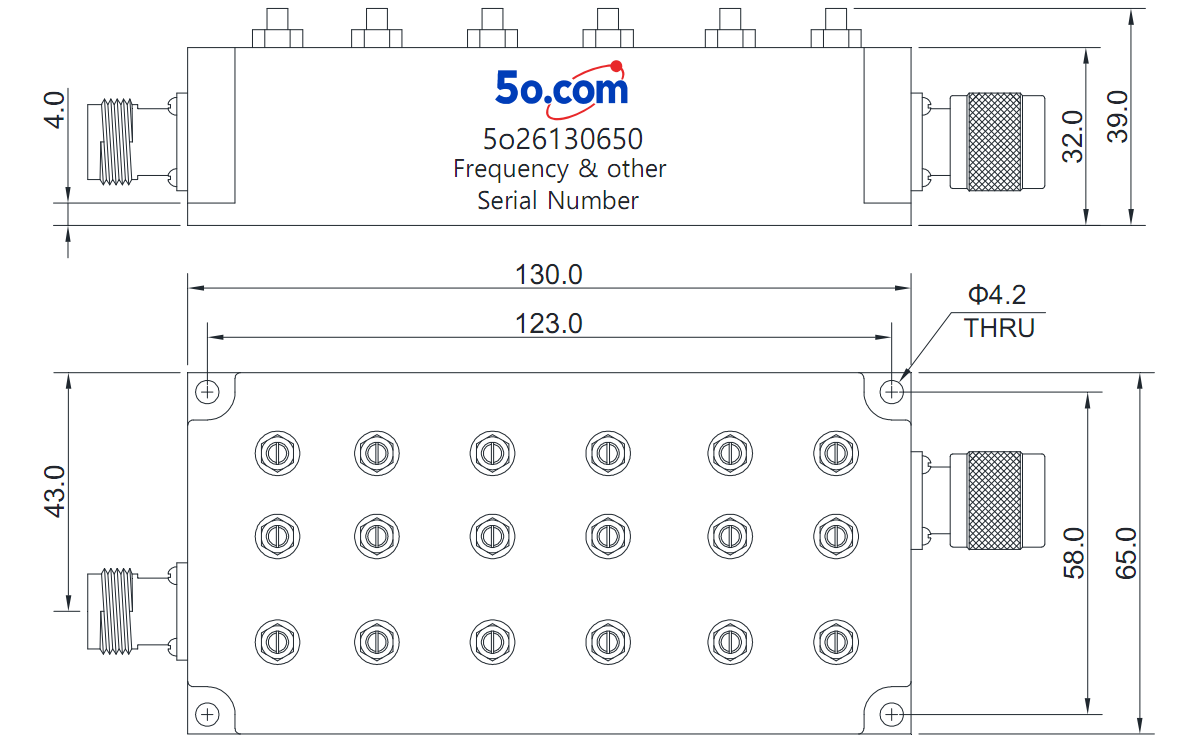

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
