Part Number

Pass Band

(MHz)

Insertion Loss
  Max(dB)

Ripple in-band Max(dB)

VSWR Max

Rejection

Connector

Type

5o2612565017101785SK

1710~1785

1.2

0.8

1.3

25dB @1805~1880MHz

50dB @1980~5000MHz

50dB @DC~1650MHz

SMA Female

5o2612565018051880NK

1805~1880

1.2

0.8

1.3

25dB @1710~1785MHz

25dB @1920~1980MHz

50dB @1980~5000MHz

50dB @DC~1710MHz

N Female

5o2612565019201980BK

1920~1980

1.2

0.8

1.3

25dB @2110~2170MHz

25dB @1805~1910MHz

55dB @2170~5000MHz

55dB @DC~1805MHz

BNC Female

5o2612565021102170NK

2110~2170

1.2

0.8

1.3

25dB @1920~1980MHz

55dB @2300~5000MHz

55dB @DC~1920MHz

N Female

5o2612565024962690NK

2496~2690

1.2

0.8

1.3

25dB @2400~2484MHz

50dB @DC~2400MHz

50dB @2800~6000MHz

N Female

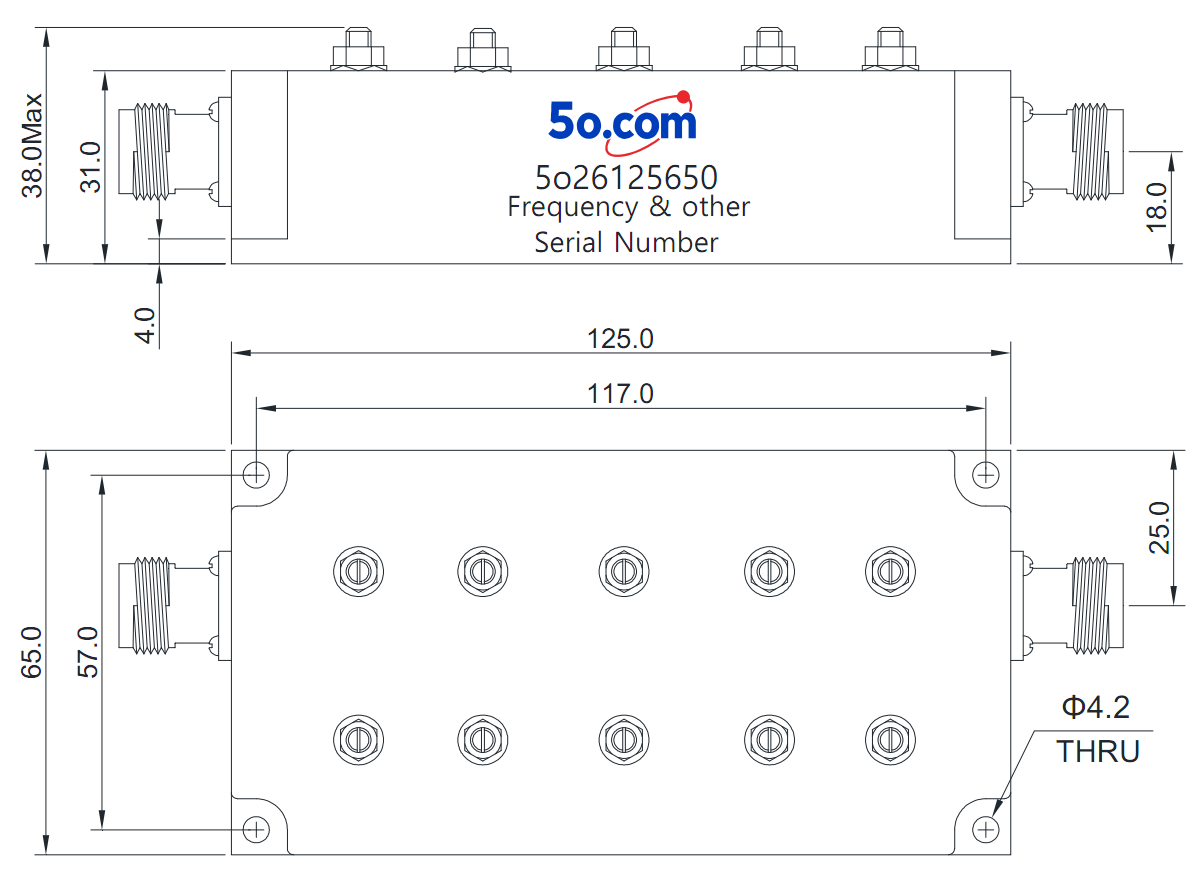

Dimension

125*65*38mm

Impedance

50Ω

Power

20W

Operating Temperature

-40 ~ +85℃

Appearance Color

Black

Storage Temperature

-55~+125℃
